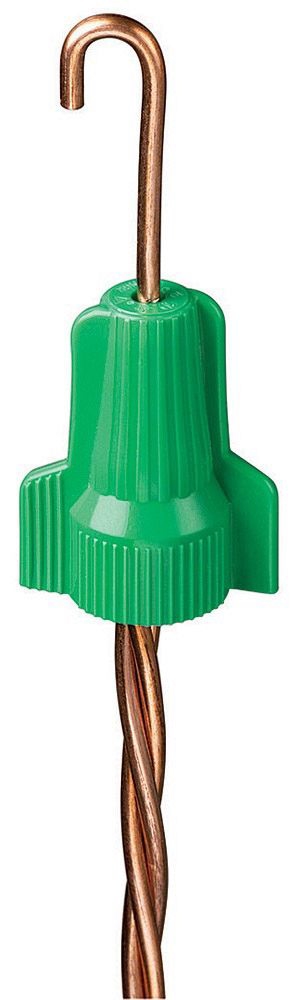

Buchanan WGR-B Green Connector 250Bg
$570.75
Description:
Buchanan WGR-B Green Connector 250Bg
Buchanan WGR-B Green Connector 250Bg
Technical Description:
Contoured Wing Type; Green Color; (2) #14 min. Wire Combination Size; (5) #12 Max. Wire Combination Size; 14 to 10 AWG Wire Size; UL 486A/774A, CSA Approval; 105 Deg C Temperature Rating; 250 Per Bag Standard Package; Non-Metallic Wire Type
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78178947007 |
| Shell Material: | Copolymer |
| Color: | Green |
| Temperature Rating: | 105 Deg C |
| Standard Package: | 250 per Bag |
| Approval: | UL 486A/774A, CSA |
| Additional Information: | Flammability Rating UL 94-V2; Application Bonding and Grounding |
| Catalog Number: | WGR-B |
| Brand Name: | WingTwist[R] |
| Model: | WGR |
| Type: | Contoured Wing |
| Wire Type: | Non-Metallic |
| Wire Size: | 14 to 10 AWG |
| Minimum Wire Combination Size: | (2) #14 |
| Maximum Wire Combination Size: | (5) #12 |
| CATALOG DESCRIPTION: | BUCHANAN, WIRE CONNECTOR, WINGTWIST, CONDUCTOR RANGE: 14 – 10 AWG, 2/14 AWG MIN, 5/12 AWG MAX, NUMBER OF CONDUCTORS: 2 TO 5, MATERIAL: FLAME-RETARDANT POLYPROPELENE, COLOR: GREEN, VOLTAGE RATING: 600 V, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 F), MODEL NUMBER: WGR |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Size Image | |
| Full Technical Description: | Contoured Wing Type; Green Color; (2) #14 min. Wire Combination Size; (5) #12 Max. Wire Combination Size; 14 to 10 AWG Wire Size; UL 486A/774A, CSA Approval; 105 Deg C Temperature Rating; 250 Per Bag Standard Package; Non-Metallic Wire Type; Copolymer Shell Material; WINGTWIST[R] Brand; Flammability Rating UL 94-V2; Application Bonding and Grounding; WGR Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Buchanan Products |
| Material Safety Data Sheet (MSDS) | |
| Product Description: | Buchanan WGR-B Green Connector 250Bg |
| Sub-Category: | Grounding Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 781789470078 |
| Unique Product Key: | 6439446 |
| comm code enhanced: | 64200 |
