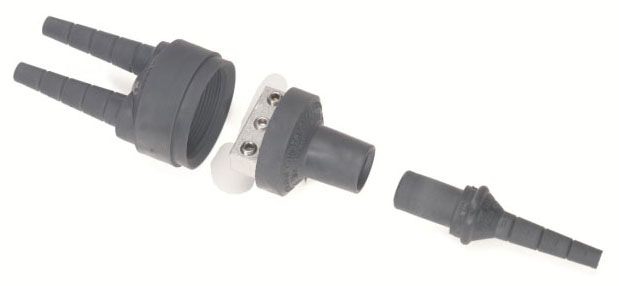

Buchanan 82S-EAFB1-C Street Lighting Kit
$91.70
Description:
Buchanan 82S-EAFB1-C Street Lighting Kit
Buchanan 82S-EAFB1-C Street Lighting Kit
Technical Description:
Breakaway Y-Tap Kit Type; CSA Approval; Set Screw Connector Type; 600 V Voltage Rating; 1/10 to 30 Ampere Current Rating; Single (Line), Single (Load), Fused Construction; Conductor Insulation Diameter 0.42 to 0.785 Inch (Line), 0.12 to 0.43 Inch (Load)
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78178903108 |
| Additional Information: | Conductor Insulation Diameter 0.42 to 0.785 Inch (Line), 0.12 to 0.43 Inch (Load); Conductor Size 10 to 2 AWG Stranded (Line), 12 to 6 AWG Stranded (Load); Conductor Type Copper Crimp (Line, Load) |
| Catalog Number: | 82S-EAFB1-C |
| Model: | 82S |
| Type: | Breakaway Y-Tap Kit |
| Voltage Rating: | 600 V |
| Current Rating: | 1/10 to 30 Ampere |
| Construction: | Single (Line), Single (Load), Fused |
| Connector Type: | Set Screw |
| Approval: | CSA |
| CATALOG DESCRIPTION: | BUCHANAN, Y-TAP KIT, BREAKAWAY Y-TAP KITS, FUSED, VOLTAGE RATING: 600 V, AMPERAGE RATING: 1/10 – 30 AMP, LINE SIDE CABLE SIZE: 1 AWG, LINE SIDE CRIMP TYPE: COPPER, LINE SIDE INSULATION DIAMETER: .420 – .785 IN, LOAD SIDE CABLE SIZE: 12 – 6 AWG, LOAD SIDE CRIMP TYPE: COPPER, LOAD SIDE INSULATION DIAMETER: .120 – .430 IN |
| Category: | Lighting Accessories |
| Full Size Image | |
| Full Technical Description: | Breakaway Y-Tap Kit Type; CSA Approval; Set Screw Connector Type; 600 V Voltage Rating; 1/10 to 30 Ampere Current Rating; Single (Line), Single (Load), Fused Construction; Conductor Insulation Diameter 0.42 to 0.785 Inch (Line), 0.12 to 0.43 Inch (Load); Conductor Size 10 to 2 AWG Stranded (Line), 12 to 6 AWG Stranded (Load); Conductor Type Copper Crimp (Line, Load); 82S Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Buchanan Products |
| Product Brochure | |
| Product Description: | Buchanan 82S-EAFB1-C Street Lighting Kit |
| Sub-Category: | Street Lighting Connector Kit |
| UNSPSC: | 39121446 |
| UPC 12 Digit: | 781789031088 |
| Unique Product Key: | 6439482 |
| comm code enhanced: | 72990 |
