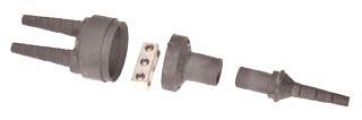

Buchanan 84S-EAFB1 Street Lighting Kit
$55.58
Description:
Buchanan 84S-EAFB1 Street Lighting Kit
Buchanan 84S-EAFB1 Street Lighting Kit
Technical Description:
Non-Breakaway Y-Splice Kit Type; CSA Approval; Set-Screw Connector Type; 600 Volt Voltage Rating; 30 Amp Current Rating; Double (Line), Single (Load), Non-Fused, Neutral Construction; Wire Size 10 to 2 AWG (Line/Load)
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78178903125 |
| Additional Information: | Wire Size 10 to 2 AWG (Line/Load); Wire Type Copper/Aluminum (Line/Load); Operating Temperature 75 Deg C |
| Catalog Number: | 84S-EAFB1 |
| Brand Name: | 82S[TM] |
| Type: | Non-Breakaway Y-Splice Kit |
| Voltage Rating: | 600 Volt |
| Current Rating: | 30 Amp |
| Construction: | Double (Line), Single (Load), Non-Fused, Neutral |
| Connector Type: | Set-Screw |
| Approval: | CSA |
| CATALOG DESCRIPTION: | BUCHANAN, Y-SPLICE KITS, VOLTAGE RATING: 600 V, AMPERAGE RATING: 70 AMP, LINE SIDE INSULATION DIAMETER: .420 – .785 IN, LOAD SIDE CABLE SIZE: 10 – 2 AWG, LINE SIDE CABLE SIZE: 1, 1/0 AWG, LINE SIDE CRIMP TYPE: COPPER OR ALUMINUM, LOAD SIDE CRIMP TYPE: COPPER OR ALUMINUM, LOAD SIDE INSULATION DIAMETER: .120 – .430 IN |
| Category: | Lighting Accessories |
| Full Size Image | |
| Full Technical Description: | Non-Breakaway Y-Splice Kit Type; CSA Approval; Set-Screw Connector Type; 600 Volt Voltage Rating; 30 Amp Current Rating; Double (Line), Single (Load), Non-Fused, Neutral Construction; Wire Size 10 to 2 AWG (Line/Load); Wire Type Copper/Aluminum (Line/Load); Operating Temperature 75 Deg C |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Buchanan Products |
| Product Description: | Buchanan 84S-EAFB1 Street Lighting Kit |
| Sub-Category: | Street Lighting Connector Kit |
| UNSPSC: | 39121446 |
| UPC 12 Digit: | 781789031255 |
| Unique Product Key: | 6439507 |
| comm code enhanced: | 72990 |
