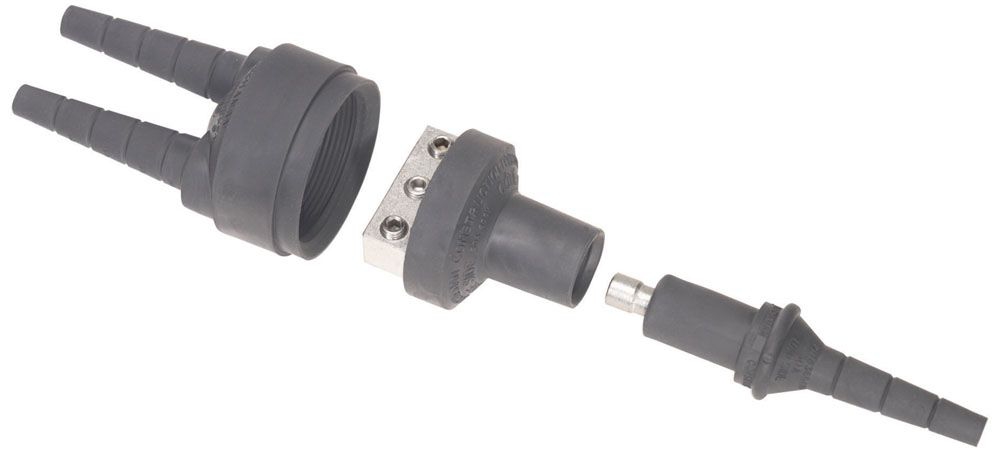

Buchanan 83S-EAFB1-LC Low-Voltage Kit
$108.28
Description:
Buchanan 83S-EAFB1-LC Low-Voltage Kit
Buchanan 83S-EAFB1-LC Low-Voltage Kit
Technical Description:
Breakaway Y-Tap Kit Type; CSA Approval; Set-Screw, Pin Connector Type; 600 Volt Voltage Rating; 30 Amp Current Rating; Double (Line), Single (Load), Non-Fused, Neutral Construction; Wire Size 10 to 2 AWG (Line), 4 to 2 AWG (Load)
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78178900127 |
| Additional Information: | Wire Size 10 to 2 AWG (Line), 4 to 2 AWG (Load); Wire Type Copper/Aluminum Set Screw (Line), Copper Crimp (Load); Operating Temperature 75 Deg C |
| Catalog Number: | 83S-EAFB1-LC |
| Brand Name: | 83S[TM] |
| Type: | Breakaway Y-Tap Kit |
| Voltage Rating: | 600 Volt |
| Current Rating: | 30 Amp |
| Construction: | Double (Line), Single (Load), Non-Fused, Neutral |
| Connector Type: | Set-Screw, Pin |
| Approval: | CSA |
| CATALOG DESCRIPTION: | BUCHANAN, Y-TAP KIT, BREAKAWAY Y-TAP KITS, NON-FUSED, VOLTAGE RATING: 600 V, AMPERAGE RATING: 70 AMP LINE, 30 AMP LOAD, LINE SIDE CABLE SIZE: 10 TO 2 AWG, LINE SIDE CRIMP TYPE: COPPER, LINE SIDE INSULATION DIAMETER: .420 – .785 IN, LOAD SIDE CABLE SIZE: 4 OR 2 AWG, LOAD SIDE CRIMP TYPE: COPPER, LOAD SIDE INSULATION DIAMETER: .120 – .430 IN |
| Category: | Low-Voltage Wiring Devices |
| Full Size Image | |
| Full Technical Description: | Breakaway Y-Tap Kit Type; CSA Approval; Set-Screw, Pin Connector Type; 600 Volt Voltage Rating; 30 Amp Current Rating; Double (Line), Single (Load), Non-Fused, Neutral Construction; Wire Size 10 to 2 AWG (Line), 4 to 2 AWG (Load); Wire Type Copper/Aluminum Set Screw (Line), Copper Crimp (Load); Operating Temperature 75 Deg C |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Buchanan Products |
| Product Brochure | |
| Product Description: | Buchanan 83S-EAFB1-LC Low-Voltage Kit |
| Sub-Category: | Street Lighting Connector Kit |
| UNSPSC: | 39121446 |
| UPC 12 Digit: | 781789001272 |
| Unique Product Key: | 6439487 |
| comm code enhanced: | 54000 |
