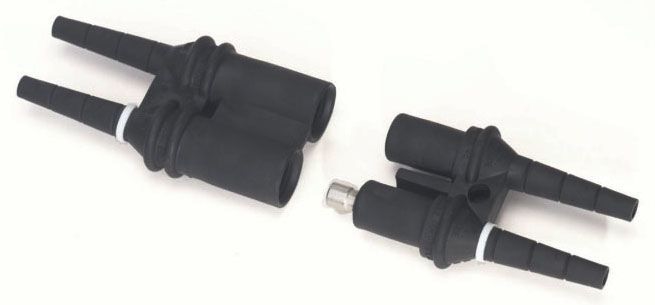

Buchanan D65PN-U Weather-Proof Connector Kit
$88.04
Description:
Buchanan D65PN-U Weather-Proof Connector Kit
Buchanan D65PN-U Weather-Proof Connector Kit
Technical Description:
Breakaway Dual in-Line Kit Type; CSA Approval; Pin Connector Type; 600 V Voltage Rating; 1/10 to 30 Ampere Current Rating; Double Ridge (Line), Single Ridge (Load), Fused Construction; Conductor Insulation Diameter 0.12 to 0.43 Inch (Line)
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78178911000 |
| Additional Information: | Conductor Insulation Diameter 0.12 to 0.43 Inch (Line); Conductor Size 12 to 6 AWG Stranded (Line); Conductor Type Copper Crimp (Line); Used On Dual Phase Line Connection |
| Catalog Number: | D65PN-U |
| Model: | D65 |
| Type: | Breakaway Dual In-Line Kit |
| Voltage Rating: | 600 V |
| Current Rating: | 1/10 to 30 Ampere |
| Construction: | Double Ridge (Line), Single Ridge (Load), Fused |
| Connector Type: | Pin |
| Approval: | CSA |
| CATALOG DESCRIPTION: | BUCHANAN, IN-LINE KIT, PHASE/NEUTRAL, VOLTAGE RATING: 600 V, AMPERAGE RATING: 1/10 – 30 AMP PHASE, 30 AMP NEUTRAL, LINE SIDE CABLE SIZE: 12, 10, 8, 6 AWG, LINE SIDE CRIMP TYPE: COPPER, LINE SIDE INSULATION DIAMETER: .120 – .430 IN, LOAD SIDE CABLE SIZE: 12 – 6 AWG, LOAD SIDE CRIMP TYPE: COPPER, LOAD SIDE INSULATION DIAMETER: .120 – .430 IN |
| Category: | Splicing & Terminating Kits |
| Full Size Image | |
| Full Technical Description: | Breakaway Dual in-Line Kit Type; CSA Approval; Pin Connector Type; 600 V Voltage Rating; 1/10 to 30 Ampere Current Rating; Double Ridge (Line), Single Ridge (Load), Fused Construction; Conductor Insulation Diameter 0.12 to 0.43 Inch (Line); Conductor Size 12 to 6 AWG Stranded (Line); Conductor Type Copper Crimp (Line); Used on Dual Phase Line Connection; D65 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Buchanan Products |
| Product Brochure | |
| Product Description: | Buchanan D65PN-U Weather-Proof Connector Kit |
| Sub-Category: | Street Lighting Crimp Connector Kit |
| UNSPSC: | 39121446 |
| UPC 12 Digit: | 781789110004 |
| Unique Product Key: | 5598342 |
| comm code enhanced: | 64130 |
