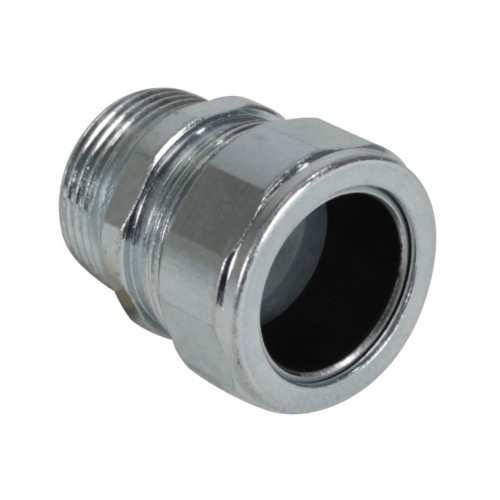

STEEL STRAIN RELIEF CORD-GRIP CONNECTORS SCG-100-450/560
$10.20
Steel Cord Grip Connector .450-.560, 1″
- Description
- Additional information
- Reviews (0)
Description
| Category | PIPE FITTING |
| Page | D29 |
| Description: | |
| Orbit Industries’ Steel Strain Relief Cord-Grip connectors are used to secure and seal cords or cables entering enclosures or raceways. The installation is easy: cords can be inserted without any disassembling fittings. Orbit Industries strain relief cord-grip connectors have a minimum 0.125” to a maximum 1.050” cable range. | |
| Features: | |
| – Steel – Zinc Electroplated – Watertight – Connect S,SO,ST,SJ,SJO, SJT Cord to metal box or enclosure – Color-coded bushings identify different cord ranges |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E310661 | |
| CAT NO | UPC | TRADE SIZE | Clamping Range | Color | STD PKG | MASTER CTN |
| SCG-50-125/250 | 835243021433 | 1/2″ | 0.125″ – 0.250″ | Red | 25 | 100 |
| SCG-50-250/350 | 835243021440 | 1/2″ | 0.250″ – 0.350″ | White | 20 | 100 |
| SCG-50-350/450 | 835243021457 | 1/2″ | 0.350″ – 0.450″ | Blue | 20 | 100 |
| SCG-50-450/560 | 835243021464 | 1/2″ | 0.450″ – 0.560″ | Green | 20 | 100 |
| SCG-50-560/650 | 835243021471 | 1/2″ | 0.560″ – 0.650″ | Beige | 20 | 100 |
| SCG-75-125/250 | 835243021488 | 3/4″ | 0.125″ – 0.250″ | Red | 10 | 50 |
| SCG-75-250/350 | 835243021495 | 3/4″ | 0.250″ – 0.350″ | White | 10 | 50 |
| SCG-75-350/450 | 835243021501 | 3/4″ | 0.350″ – 0.450″ | Blue | 10 | 50 |
| SCG-75-450/560 | 835243021518 | 3/4″ | 0.450″ – 0.560″ | Green | 10 | 50 |
| SCG-75-560/650 | 835243021525 | 3/4″ | 0.560″ – 0.650″ | Beige | 10 | 50 |
| SCG-75-650/750 | 835243021532 | 3/4″ | 0.650″ – 0.750″ | Yellow | 10 | 50 |
| SCG-75-750/850 | 835243021549 | 3/4″ | 0.750″ – 0.850″ | Purple | 10 | 50 |
| SCG-100-450/560 | 835243021556 | 1″ | 0.450″ – 0.560″ | Green | 5 | 25 |
| SCG-100-560/650 | 835243021563 | 1″ | 0.560″ – 0.650″ | Beige | 5 | 25 |
| SCG-100-650/750 | 835243021570 | 1″ | 0.650″ – 0.750″ | Yellow | 5 | 25 |
| SCG-100-750/850 | 835243021587 | 1″ | 0.750″ – 0.850″ | Purple | 5 | 25 |
| SCG-100-850/950 | 835243021594 | 1″ | 0.850″ – 0.950″ | Gray | 5 | 25 |
| SCG-100-950/1050 | 835243021600 | 1″ | 0.950″ – 1.050″ | Black | 5 | 25 |
Additional information
| Weight | 1.36 kg |
|---|
