EMT TO EMT PULL ELBOWS SET-SCREW TYPE WITH GASKET SSPE-G75
$6.33

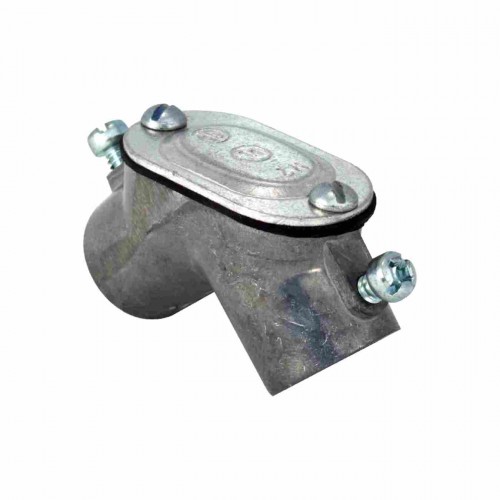

Emt To Emt Pull Elbow + Gasket 3/4″
- Description
- Additional information
- Reviews (0)
Description
| Category | PIPE FITTING |
| Page | D10 |
| Description: | |
| Orbit Industries’ set-screw EMT to EMT pull elbows are used when 90° turns are needed in conduits and when wires must be pulled through elbows before making the turn. The set-screw pull elbows are protected from dirt, dust and moisture by a gasket and cover and they are ready to use immediately. This removable gasket and cover allow for wires to be pulled and fed back into pipes at a 90° angle or turn. | |
| Features: | |
| – Zinc Die Cast – Aluminum Cover – With Gasket |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E310658 | |
| CAT NO | UPC | TRADE SIZE | STD PKG | MASTER CTN |
| SSPE-G50 | 8-35243-05224-6 | 1/2″ | 10 | 100 |
| SSPE-G75 | 8-35243-05225-3 | 3/4″ | 5 | 50 |
| SSPE-G100 | 8-35243-05222-2 | 1″ | – | 25 |
| SSPE-G125 | 8-35243-05223-9 | 1-1/4″ | – | 20 |
Additional information
| Weight | 1.49 kg |
|---|
