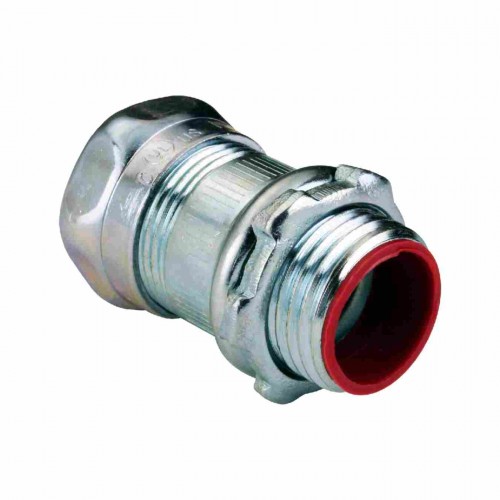

STEEL EMT CONNECTORS COMPRESSION TYPE INSULATED OF7604-S
$3.16
Steel Emt Comp. Conn. Insul. 1-1/4″
- Description
- Additional information
- Reviews (0)
Description
| Category | PIPE FITTING |
| Page | D2 |
| Description: | |
| Orbit Industries compression connectors are used to bond EMT conduits to electrical junction boxes or enclosures. The steel construction ensures mechanical protection and the conduit to the designated electrical junction box or enclosure. | |
| Features: | |
| – Steel – Zinc Electro-Plated – Concrete-Tight – Suitable for applications above 600V – With Insulated Throat (Yellow, Throat color may vary) – Sizes 2-1/2″ to 4″ are also listed for RIGID and IMC Conduits |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E310660 | |
| CAT NO | UPC | TRADE SIZE | STD PKG | MASTER CTN |
| OF7601-S | 8-35243-05070-9 | 1/2″ | 25 | 250 |
| OF7602-S | 8-35243-05074-7 | 3/4″ | 25 | 250 |
| OF7603-S | 8-35243-05078-5 | 1″ | 10 | 100 |
| OF7604-S | 8-35243-05082-2 | 1-1/4″ | 10 | 100 |
| OF7605-S | 8-35243-05086-0 | 1-1/2″ | 10 | 50 |
| OF7606-S | 8-35243-05090-7 | 2″ | 5 | 50 |
| OF7607-S | 8-35243-05094-5 | 2-1/2″ | – | 12 |
| OF7608-S | 8-35243-05098-3 | 3″ | – | 12 |
| OF7609-S | 8-35243-05102-7 | 3-1/2″ | – | 6 |
| OF7610-S | 8-35243-05106-5 | 4″ | – | 6 |
Additional information
| Weight | 3.72 kg |
|---|
