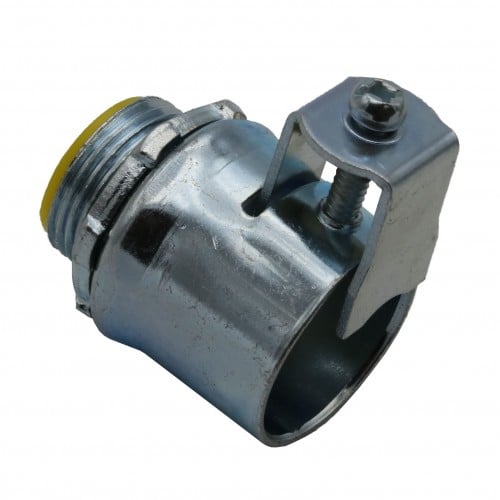

STEEL INSULATED FLEX CONNECTORS DOUBLE-BITE SADDLE CLAMP TYPE SFID-100
$12.12
Steel Flex Saddle Clamps Double-Bite Type Conn. Insul. 1″
- Description
- Additional information
- Reviews (0)
Description
| Category | PIPE FITTING |
| Page | D13 |
| Description: | |
| Orbit Industries’ FLEX Connecters offer a fast and reliable installation of EMT conduits and flex conduits, metal clad or armored cables to electrical junction boxes or enclosures. The dual gripping saddle clamp have the shape fitting metal jacket of cables, which prevents metal jacket from being distorted and protects wires inside. Steel construction ensures the strength of the connecters and provides great mechanical protection to conduits and cables, and plated zinc provides great corrosion resistance. The insulated throat protects wire coating from being scratched when wires are being pulled. | |
| Features: | |
| – Steel – Zinc plated for corrosion protection – With Insulated throat for wire protection – Dual gripping saddle clamp for FLEX conduits and MC/AC cables – Combo-head screw moves saddle clamp up and down for easy installation – For AC, MCI, HCF AC cable steel and aluminum. MCI-A cable aluminum. HCF MCI-A. Flexible metal conduit steel and aluminum (regular, reduced wall, and Xreduced wall) – Dry location |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E362145 | |
| CAT NO | UPC | TRADE SIZE | KO SIZE | CABLE SIZE | CABLE O.D. RANGE | STD PKG | MASTER CTN | |
| SFID-38 | 8-35243-02866-1 | 3/8″ | 1/2″ | 14/2 – 10/3 | 0.400″ – 0.660″ | 25 | 100 | |
| SFID-50 | 8-35243-02867-8 | 1/2″ | 1/2″ | 12/4 – 6/3 | 0.520″ – 0.920″ | 25 | 100 | |
| SFID-75 | 8-35243-02868-5 | 3/4″ | 3/4″ | 8/3 – 4/3 | 0.680″ – 1.110″ | 25 | 100 | |
| SFID-100 | 8-35243-02869-2 | 1″ | 1″ | 6/4 – 1/3 | 0.880″ – 1.375″ | 10 | 40 | |
| For compatible sizes and O.D. ranges across all cable types, refer to the cable compatibility chart (PDF). | ||||||||
Additional information
| Weight | 3.11 kg |
|---|
