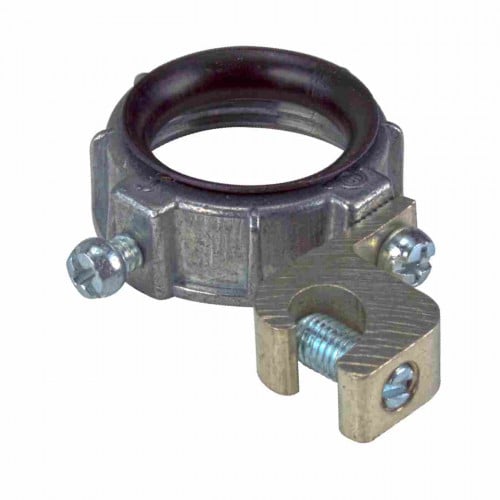

GROUNDING BUSHINGS INSULATED UNIVERSAL LAY-IN LUG GBLL-75
$3.30
3/4″ Ground Bushing With Lay-In Lug, #14-#4
- Description
- Additional information
- Reviews (0)
Description
| Category | PIPE FITTING |
| Page | D42 |
| Description: | |
| Orbit Industries’ grounding bushings insulated universal lay-in lug are used with locknut to terminate service conduit to cabinet. The lug provided for bonding jumper to neutral busbar. Plastic liner prevents damage to wire insulation, 105°C rated. | |
| Features: | |
| – Zinc Die Cast – 105°C rated Throat Insulator – Aluminum Lay-In Lug for use with copper or aluminum grounding conductor |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E310659 | |
| CAT NO | UPC | TRADE SIZE | Lug Range | STD PKG | MASTER CTN |
| GBLL-50 | 8-35243-03085-5 | 1/2″ | #14 – #4 | 50 | 500 |
| GBLL-75 | 8-35243-03086-2 | 3/4″ | #14 – #4 | 40 | 400 |
| GBLL-100 | 8-35243-03087-9 | 1″ | #14 – #4 | 15 | 150 |
| GBLL-125 | 8-35243-03088-6 | 1-1/4″ | #14 – #4 | 15 | 150 |
| GBLL-125-10 | 8-35243-02175-4 | 1-1/4″ | #14-#1/0 | 20 | 200 |
| GBLL-150 | 8-35243-03089-3 | 1-1/2″ | #14 – #4 | 10 | 100 |
| GBLL-150-10 | 8-35243-02176-1 | 1-1/2″ | #14-#1/0 | 10 | 100 |
| GBLL-200 | 8-35243-03090-9 | 2″ | #14 – #4 | 5 | 50 |
| GBLL-200-10 | 8-35243-02177-8 | 2″ | #14-#1/0 | 10 | 100 |
| GBLL-250 | 8-35243-03091-6 | 2-1/2″ | #6 – #250MCM | 5 | 50 |
| GBLL-250-10 | 8-35243-02178-5 | 2-1/2″ | #14-#1/0 | – | 50 |
| GBLL-300 | 8-35243-03092-3 | 3″ | #6 – #250MCM | 5 | 50 |
| GBLL-300-10 | 8-35243-02179-2 | 3″ | #14-#1/0 | – | 50 |
| GBLL-350 | 8-35243-03093-0 | 3-1/2″ | #6 – #250MCM | 4 | 40 |
| GBLL-350-10 | 8-35243-02180-8 | 3-1/2″ | #14-#1/0 | – | 10 |
| GBLL-400 | 8-35243-03094-7 | 4″ | #6 – #250MCM | 4 | 40 |
| GBLL-400-10 | 8-35243-02181-5 | 4″ | #14-#1/0 | – | 10 |
Additional information
| Weight | 2.51 kg |
|---|
