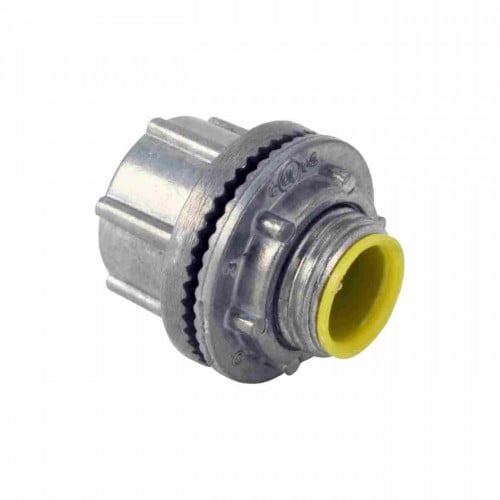

WATERTIGHT HUBS WH-100
$5.49
1″ Watertight Connector
- Description
- Additional information
- Reviews (0)
Description
| Category | PIPE FITTING |
| Page | D35 |
| Description: | |
| Orbit Industries’ standard watertight hubs are used with threaded rigid or IMC conduits to connect and bond them to threaded openings in boxes or enclosures. The die cast zinc watertight hubs may be used in both wet and dry locations. Orbit Industries’ watertight hubs have a rugged metallic construction and they are durable. The rugged construction ensures mechanical protection. There is an insulated throat to protect wires and reduce the effort of pulling wires. Orbit Industries’ watertight hubs also feature an O-ring to provide a rain-tight seal on electrical boxes or enclosures. | |
| Features: | |
| – Zinc Die Cast – 105°C rated Throat Insulator – Insulated color may vary |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E310658 | |
| CAT NO | UPC | TRADE SIZE | STD PKG | MASTER CTN |
| WH-50 | 8-35243-03056-5 | 1/2″ | 25 | 125 |
| WH-75 | 8-35243-03057-2 | 3/4″ | 25 | 125 |
| WH-100 | 8-35243-03058-9 | 1″ | 25 | 125 |
| WH-125 | 8-35243-03059-6 | 1-1/4″ | 10 | 50 |
| WH-150 | 8-35243-03060-2 | 1-1/2″ | 10 | 50 |
| WH-200 | 8-35243-03061-9 | 2″ | 10 | 50 |
| WH-250 | 8-35243-03062-6 | 2-1/2″ | 5 | 25 |
| WH-300 | 8-35243-03063-3 | 3″ | 2 | 10 |
| WH-350 | 8-35243-03064-0 | 3-1/2″ | 2 | 10 |
| WH-400 | 8-35243-03065-7 | 4″ | 2 | 10 |
Additional information
| Weight | 8.78 kg |
|---|
