CONDUIT TO FLANGE CLIPS, BOTTOM MOUNT, PUSH IN, 1/2” – 1” EMT, 1/8” – 3/4” FLANGE F12P24
$2.50
Cond.To Flg. Clip,Bot. Mnt. 3/4″ Emt, 1/8″-1/4″ Flg. Push In
- Description
- Additional information
- Reviews (0)
Description
| Category | FASTENER |
| Page | F3 |
| Description: | |

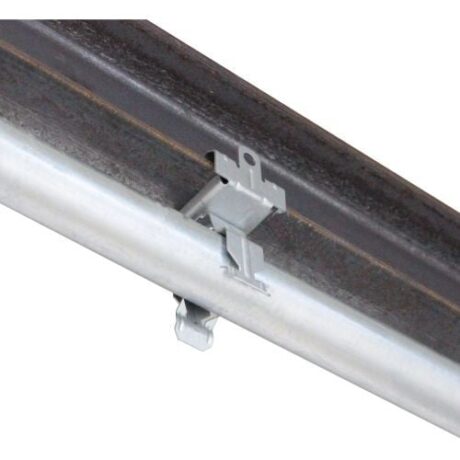

| Orbit Industries’ bottom mount push in conduit to flange clips can be easily and fast installed to beam flanges from 1/8” to 3/4” with only a hammer. The clips support EMT and rigid conduits from the bottom of beams and conduits can be easily pushed in by hand. The rotatable joint allows the push in conduit clip to rotate 360° to fit conduits in different directions. | |
| Features: | |
| – Spring Steel – Only hammer needed for installation – Available for EMT, rigid and aluminum conduit – Can pivot through 360° |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E328572 | |
| CAT NO | UPC | FLANGE THICKNESS | EMT SIZE | RIGID SIZE | STATIC LOAD | STD PKG |
| F8P24 | 8-35243-02454-0 | 1/8” – 1/4” | 1/2” | – | 25 LB | 100 |
| F8P58 | 8-35243-02455-7 | 5/16” – 1/2” | 1/2” | – | 25 LB | 100 |
| F8P912 | 8-35243-02456-4 | 9/16” – 3/4” | 1/2” | – | 25 LB | 50 |
| F12P24 | 8-35243-02457-1 | 1/8” – 1/4” | 3/4” | 1/2” | 25 LB | 100 |
| F12P58 | 8-35243-02458-8 | 5/16” – 1/2” | 3/4” | 1/2” | 25 LB | 100 |
| F12P912 | 8-35243-02459-5 | 9/16” – 3/4” | 3/4” | 1/2” | 25 LB | 100 |
| F16P24 | 8-35243-02460-1 | 1/8” – 1/4” | 1” | 3/4” | 25 LB | 100 |
| F16P58 | 8-35243-02461-8 | 5/16” – 1/2” | 1” | 3/4” | 25 LB | 50 |
| F16P912 | 8-35243-02462-5 | 9/16” – 3/4” | 1” | 3/4” | 25 LB | 50 |
Additional information
| Weight | 8.42 kg |
|---|
