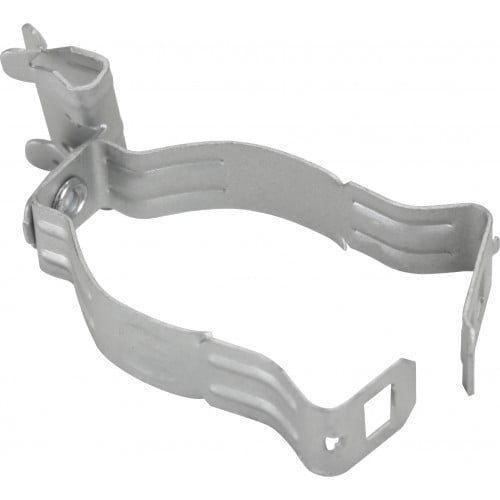

CONDUIT TO FLANGE CLIPS, SIDE MOUNT, SNAP CLOSE, 1/2” – 2” EMT, 1/8” – 3/4” FLANGE F20M912SM
$3.15
Cond. To Flg.Clip,Side Mnt. 1-1/4″Emt,9/16″-3/4″Flg. Snp.Cls
- Description
- Additional information
- Reviews (0)
Description
| Category | FASTENER |
| Page | F2 |
| Description: | |
| Orbit Industries’ side mount snap close conduit to flange clips can be easily and fast installed to beam flanges from 1/8” to 3/4” with only a hammer. The clips support EMT and rigid conduits from the side of beams and snap conduits easily. The rotatable joint allows the snap-close conduit clip to rotate 360° to fit conduits in different directions. | |
| Features: | |
| – Spring Steel – Available for EMT, rigid and aluminum conduit – Snap close clip can pivot through 360° – Only hammer needed for installation |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E328572 | |
| CAT NO | UPC | FLANGE THICKNESS | EMT/RIGID SIZE | FMC SIZE | MC/AC SIZE | STATIC LOAD | STD PKG |
| F6M24SM | 8-35243-02591-2 | 1/8” – 1/4” | – | 3/8” | 14-2 TO 12-3 | 25 LB | 100 |
| F6M58SM | 8-35243-02592-9 | 5/16” – 1/2” | – | 3/8” | 14-2 TO 12-3 | 25 LB | 100 |
| F6M912SM | 8-35243-02593-6 | 9/16” – 3/4” | – | 3/8” | 14-2 TO 12-3 | 25 LB | 100 |
| F812M24SM | 8-35243-02475-5 | 1/8” – 1/4” | 1/2”, 3/4” | – | – | 25 LB | 100 |
| F812M58SM | 8-35243-02476-2 | 5/16” – 1/2” | 1/2”, 3/4” | – | – | 25 LB | 100 |
| F812M912SM | 8-35243-02594-3 | 9/16” – 3/4” | 1/2”, 3/4” | – | – | 25 LB | 100 |
| F16M24SM | 8-35243-02595-0 | 1/8” – 1/4” | 1” | – | – | 25 LB | 100 |
| F16M58SM | 8-35243-02596-7 | 5/16” – 1/2” | 1” | – | – | 25 LB | 100 |
| F16M912SM | 8-35243-02597-4 | 9/16” – 3/4” | 1” | – | – | 25 LB | 100 |
| F20M24SM | 8-35243-02598-1 | 1/8” – 1/4” | 1 1/4″ | – | – | 25 LB | 100 |
| F20M58SM | 8-35243-02599-8 | 5/16” – 1/2” | 1 1/4″ | – | – | 25 LB | 100 |
| F20M912SM | 8-35243-02600-1 | 9/16” – 3/4” | 1 1/4″ | – | – | 25 LB | 100 |
| F24M24SM | 8-35243-02601-8 | 1/8” – 1/4” | 1 1/2″ | – | – | 25 LB | 50 |
| F24M58SM | 8-35243-02602-5 | 5/16” – 1/2” | 1 1/2″ | – | – | 25 LB | 50 |
| F24M912SM | 8-35243-02603-2 | 9/16” – 3/4” | 1 1/2″ | – | – | 25 LB | 50 |
| F32M24SM | 8-35243-02604-9 | 1/8” – 1/4” | 2″ | – | – | 25 LB | 50 |
| F32M58SM | 8-35243-02605-6 | 5/16” – 1/2” | 2″ | – | – | 25 LB | 50 |
| F32M912SM | 8-35243-02606-3 | 9/16” – 3/4” | 2″ | – | – | 25 LB | 50 |
Additional information
| Weight | 9.5 kg |
|---|
