HAMMER ON FLANGE CLIPS, BOTTOM MOUNT, 1/8” – 3/4” FLANGE FM24
$1.28
Ham. On Flange Clip, B.Mnt. 1/8″-1/4″ Flange, 1/4″ Rod
- Description
- Additional information
- Reviews (0)
Description
| Category | FASTENER |
| Page | F32 |
| Description: | |

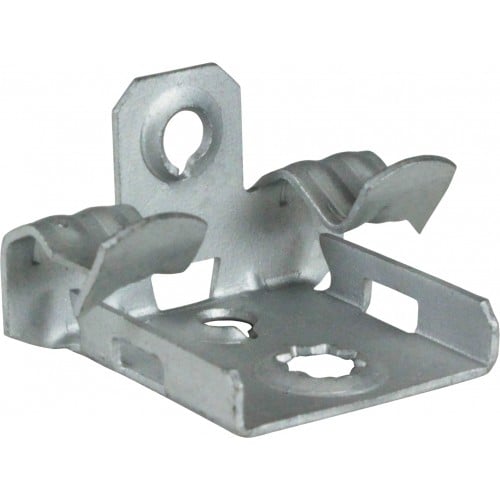

| Orbit Industries’ bottom mount hammer on flange clips can be independently mounted to any surface. The clips support variety of attachments with or without installing rod or strap. Tap on flanges from 1/8” to 3/4” with only a hammer. | |
| Features: | |
| – Spring Steel – Can be used to support boxes, fixtures or other attachments from beam flanges – Only hammer needed for installation |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E328572 | |
| CAT NO | UPC | FLANGE THICKNESS | ROD SIZE | VERTICAL ROD | HORIZONTAL ROD | VERTICAL STRAP | STD PKG |
| FM24 | 8-35243-02423-6 | 1/8” – 1/4” | 1/4” | 100 LB | 25 LB | 75 LB | 100 |
| FM58 | 8-35243-02424-3 | 5/16” – 1/2” | 1/4” | 100 LB | 25 LB | 75 LB | 100 |
| FM912 | 8-35243-02425-0 | 9/16” – 3/4” | 1/4” | 100 LB | 25 LB | 75 LB | 100 |
Additional information
| Weight | 5.34 kg |
|---|
