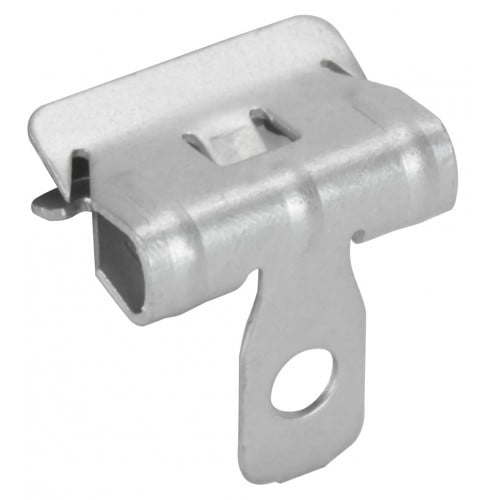

HAMMER ON FLANGE CLIPS, SIDE MOUNT, 3/32” – 3/4” FLANGE F2H4
$0.84
Hammer On Flange Clip, Side Mount, 3/32″-9/64″ Flange
- Description
- Additional information
- Reviews (0)
Description
| Category | FASTENER |
| Page | F32 |
| Description: | |

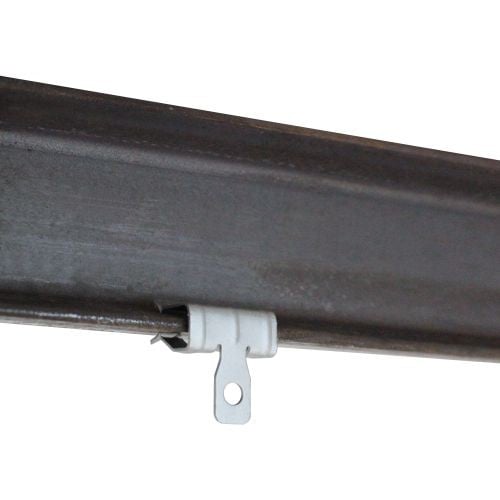

| Orbit Industries’ side mount hammer on flange clips can be independently mounted to most beams and purlins to hang variety of attachments. Tap on the flange from 3/32” to 3/4” with a hammer. | |
| Features: | |
| – Spring Steel – Provide attachment for wire, S-hooks, chain to flanges – Fit most beams – Only hammer needed for installation |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E328572 | |
| CAT NO | UPC | FLANGE THICKNESS | HOLE SIZE | STATIC LOAD | STD PKG |
| F2H4 | 8-35243-02429-8 | 3/32” – 9/64” | 1/4”, PLAIN | 160 LB | 100 |
| F4H24 | 8-35243-02430-4 | 1/8” – 1/4” | 1/4”, PLAIN | 200 LB | 100 |
| F4H58 | 8-35243-02431-1 | 5/16” – 1/2” | 1/4”, PLAIN | 200 LB | 100 |
| F4H912 | 8-35243-02432-8 | 9/16” – 3/4” | 1/4”, PLAIN | 200 LB | 100 |
Additional information
| Weight | 1.48 kg |
|---|
