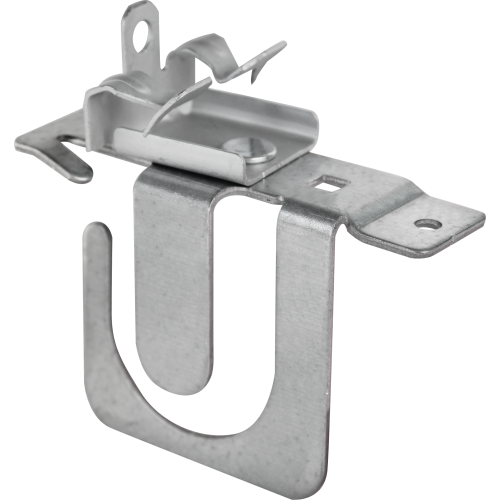

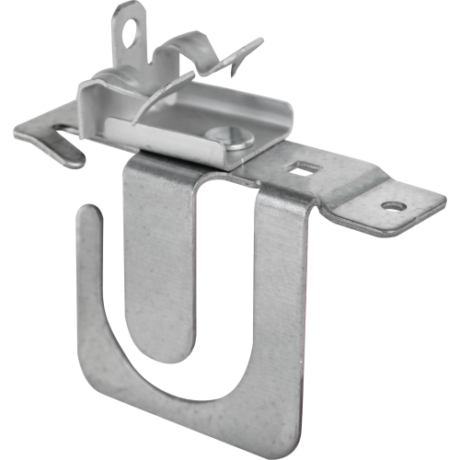

MC/AC CABLE SUPPORT BRACKETS WITH FLANGE CLIP FMCS10024
$7.84
Cable Spt.Brk.W/Flg.Clip,8 14-2 To 10-2 Mc/Ac, 1/8″-1/4″Flg.
- Description
- Additional information
- Reviews (0)
Description
| Category | FASTENER |
| Description: | |
| Orbit’s MC/AC Cable Support Brackets with Flange Clip provide a reliable and organized solution for supporting multiple MC/AC cables to flanges. Designed to accommodate cables from multiple directions, these brackets effectively support and neatly arrange MC/AC cables in compliance with NEC & CEC requirements. No need to derate cables. By maintaining proper cable spacing, these brackets prevent bundling issues, ensuring an efficient cable management system. | |
| Features: | |
| – Electro Galvanized Steel bracket – Spring Steel clip – MC/AC bracket pivots 360° for flexible cable positioning – Support and secure multiple cable run for a neat and organized installation – Comply with NEC & CEC requirements for MC/AC cable support. No need to derate cables. – Prevent cable bundling by maintaining proper spacing and organization |
|
| CAT NO | UPC | MC/AC CABLE SIZE | CABLE CAPACITY | FLANGE THICKNESS | STD PKG |
| FMCS10024 | 8-35243-04030-4 | 14-3 TO 10-2 | 8 | 1/8″ – 1/4″ | 25 |
| FMCS10124 | 8-35243-04031-1 | 10-3 TO 8-3 | 7 | 1/8″ – 1/4″ | 25 |
Additional information
| Weight | 17.07 kg |
|---|
