ROD TO FLANGE CLIPS F6TA24
$2.09
Rod To Flange Clip, 1/8″-1/4″ Flange, 3/8″ Rod
- Description
- Additional information
- Reviews (0)
Description
| Category | FASTENER |
| Page | F32 |
| Description: | |

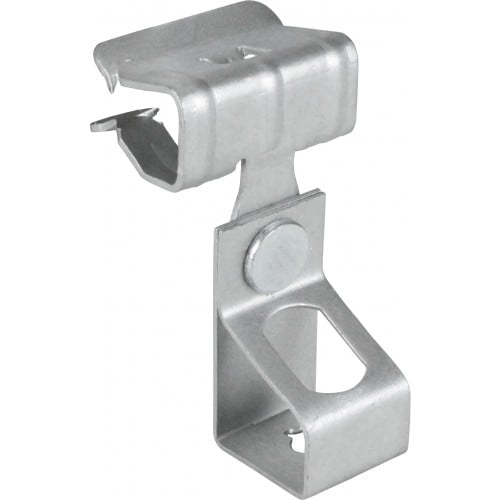

| Orbit Industries’ rod to flange clips can be easily tapped on the flange from 1/8” to 3/4” with a hammer. The threaded hole is used to suspend threaded rod and the rotatable joint can keep the rod in the vertical direction. | |
| Features: | |
| – Spring Steel – Provide attachment for threaded rod to flanges – Can swivel to provide a vertical dropdown – Only hammer needed for installation |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E328572 | |
| CAT NO | UPC | FLANGE THICKNESS | HOLE SIZE | HOLE TYPE | STATIC LOAD | STD PKG |
| F4TI24 | 8-35243-02433-5 | 1/8” – 1/4” | 1/4” | THREADED | 200 lbs | 100 |
| F4TI58 | 8-35243-02434-2 | 5/16” – 1/2” | 1/4” | THREADED | 200 lbs | 100 |
| F4TI912 | 8-35243-02435-9 | 9/16” – 3/4” | 1/4” | THREADED | 200 lbs | 100 |
| F6TI24 | 8-35243-04070-0 | 1/8” – 1/4” | 3/8″ | THREADED | 200 lbs | 100 |
| F6TI58 | 8-35243-04071-7 | 5/16” – 1/2” | 3/8″ | THREADED | 200 lbs | 100 |
| F6TI912 | 8-35243-04072-4 | 9/16” – 3/4” | 3/8″ | THREADED | 200 lbs | 100 |
| F6TA24 | 8-35243-04067-0 | 1/8” – 1/4” | 3/8″ | PLAIN | 200 lbs | 100 |
| F6TA58 | 8-35243-04068-7 | 5/16” – 1/2” | 3/8″ | PLAIN | 200 lbs | 100 |
| F6TA912 | 8-35243-04069-4 | 9/16” – 3/4” | 3/8″ | PLAIN | 200 lbs | 100 |
Additional information
| Weight | 3.57 kg |
|---|
