STRAP HANGERS FOR FLANGE PARALLEL FMSS24
$1.87

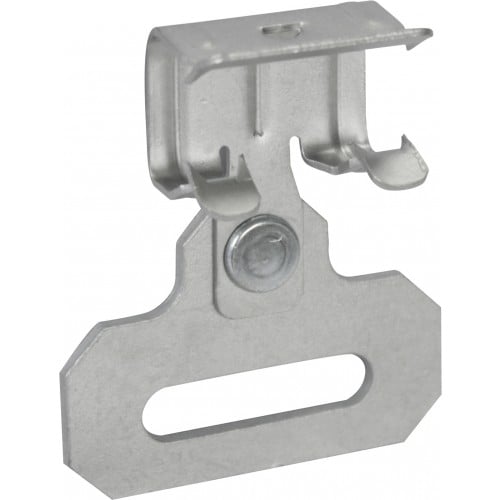

Strap Hanger For Flg.,Parallel,1/8″-1/4″Flg. 1-1/4″Max Strap
- Description
- Additional information
- Reviews (0)
Description
| Category | FASTENER |
| Page | F36 |
| Description: | |
| Orbit Industries’ parallel strap hangers for flange are designed for beams with flange from 1/8” to 3/4”, and can be easily and fast installed to beams with only a hammer. The hangers are used to support pipes, ducts or other products with straps. The hangers suspend straps at right angle to the beam and supported pipes and ducts are parallel to the beam. Installers need to measure the length of strap to keep the supported pipe and duct at an appropriate position. | |
| Features: | |
| – Spring Steel Clip – Pre-galvanized Steel Hanger – Suspend straps parallel to beams – Only hammer needed for installation |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E328572 | |
| CAT NO | UPC | FLANGE THICKNESS | STRAP WIDTH | STATIC LOAD | STD PKG |
| FMSS24 | 8-35243-02650-6 | 1/8″ – 1/4″ | 1-1/4″ MAX | 200 LB | 50 |
| FMSS58 | 8-35243-02651-3 | 5/16″ – 1/2″ | 1-1/4″ MAX | 200 LB | 50 |
| FMSS912 | 8-35243-02652-0 | 9/16″ – 3/4″ | 1-1/4″ MAX | 200 LB | 50 |
Additional information
| Weight | 5.07 kg |
|---|
