BOX/MULTI-CONDUIT TO WIRE/ROD HANGER F6M3B18CO
$11.06
Box/Multi-Cond. To Rod/Wire Hanger, 3/8? Fmc, 1/4″ Rod
- Description
- Additional information
- Reviews (0)
Description
| Category | FASTENER |
| Page | F8 |
| Description: | |

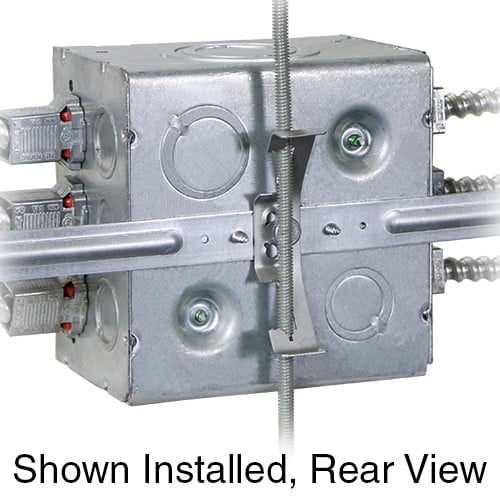

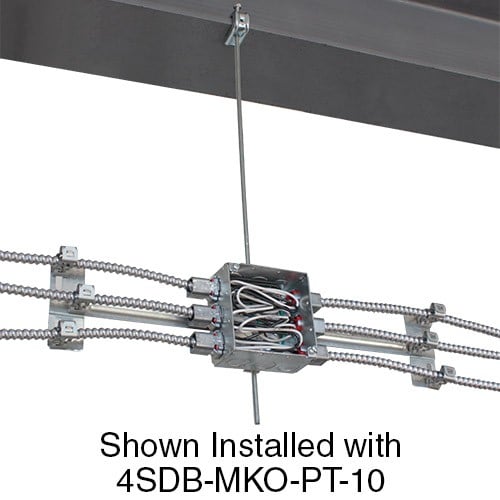

| Orbit Industries’ Box and Multi-Conduit to Wire/Rod Hanger makes it easy to suspend an electrical junction box and conduits from a drop wire or threaded rod. F6M3B18CO is designed to support boxes from the center – with multiple conduits on either side – using less drop wire or rod than traditional hanging methods. Snap-close conduit clamps at each end allow for quick and easy fastening of up to six MC/AC/Flex cables. Central clip attaches the hanger to either #12-#8 drop wire or 1/4″ threaded rod. | |
| Features: | |
| – Pre-Galvanized Steel Hanger & Bracket – Spring Steel Wire/Rod Clip – Spring Steel Clamps supports up to six (6) conduit / cable runs from both sides of the box – Provides support for both sides of horizontal electrical box or conduit – Greatly reduces material costs for drop wire or rods vs. traditional methods – Accepts 4″ square, 4-11/16″ and 5″ boxes – Eliminates need for offset conduit bending |
|
| CAT NO | UPC | FMC SIZE |
MC/AC SIZE |
ROD SIZE |
WIRE SIZE |
STD PKG |
| F6M3B18CO | 8-35243-02919-4 | 3/8” | 14-2 TO 12-3 | 1/4” | #12 – #8 | 25 |
Additional information
| Weight | 15.55 kg |
|---|
