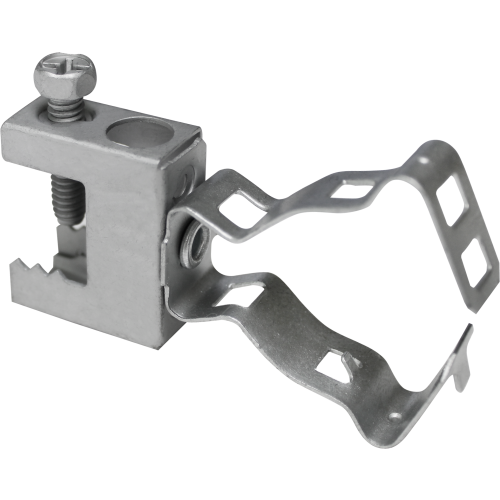

CONDUIT TO BEAM CLAMPS, SIDE MOUNT, SNAP CLOSE FBC16MSM
$4.47
Cond.To Beam Clp. Side Mnt. 1″ Emt, 1/2″Max Flg. Snp.Cls
- Description
- Additional information
- Reviews (0)
Description
| Category | FASTENER |
| Description: | |
| Orbit Industries’ side-mount snap-close conduit-to-beam clamps can be easily and quickly installed onto beam flanges up to 1/2″. These clips support EMT and rigid conduit from the side of beams and securely snap conduit into place. The rotatable joint allows the snap-close conduit clip to rotate 360°, accommodating conduit in various directions. | |
| Features: | |
| – Spring Steel – Support conduit from beam flanges – Snap-close clip pivots 360° for flexible conduit positioning – Quick and easy installation |
|
 |
|
| UL File Number: | |
| E328572 | |
| CAT NO | UPC | FLANGE THICKNESS | EMT/RIGID SIZE | STATIC LOAD | STD PKG |
| FBC812MSM | 8-35243-04009-0 | 1/2” MAX | 1/2”, 3/4” | 25 lbs. | 100 |
| FBC16MSM | 8-35243-04010-6 | 1/2” MAX | 1” | 25 lbs. | 100 |
| FBC20MSM | 8-35243-04011-3 | 1/2” MAX | 1-1/4” | 25 lbs. | 100 |
| FBC24MSM | 8-35243-04012-0 | 1/2” MAX | 1-1/2″ | 25 lbs. | 50 |
| FBC32MSM | 8-35243-04013-7 | 1/2” MAX | 2″ | 25 lbs. | 50 |
Additional information
| Weight | 4.52 kg |
|---|
