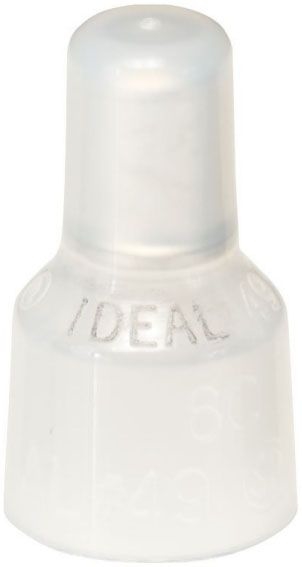

Ideal 30-649 Pre-Insulated Crimp Connector Min. 1 #22 W/1 #18 Max. 1 #12 W/1 #16
$2,508.30
Description:
Ideal 30-649 Pre-Insulated Crimp Connector Min. 1 #22 W/1 #18 Max. 1 #12 W/1 #16
Ideal 30-649 Pre-Insulated Crimp Connector Min. 1 #22 W/1 #18 Max. 1 #12 W/1 #16
Technical Description:
Pre-Insulated Type; Tin Plated Copper Material; (1) #22, (1) #18 min. Wire Combination Size; (1) #12, (1) #16 Max. Wire Combination Size; UL 486C, CSA C22.2 Approval; 600 Volt Voltage Rating; 105 Deg C Temperature Rating; 10000 Per Keg Standard Package
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325021383 |
| Insulation Material: | Nylon |
| Temperature Rating: | 105 Deg C |
| Standard Package: | 10000 per Keg |
| Approval: | UL 486C, CSA C22.2 |
| Additional Information: | RoHS Compliant; Overall Dimension 0.47 Inch Diameter x 0.82 Inch Length; Strip Length 3/8 Inch; Color White; Flammability Rating UL 94V-2; Application Pneumatic Crimp Tool, Pre-Insulated Crimp Application Machine, Crimpmaster Hand Tool |
| Catalog Number: | 30-649 |
| Brand Name: | Ideal |
| Type: | Pre-Insulated |
| Voltage Rating: | 600 Volt |
| Wire Type: | Solid/Stranded |
| Minimum Wire Combination Size: | (1) #22, (1) #18 |
| Maximum Wire Combination Size: | (1) #12, (1) #16 |
| Material: | Tin Plated Copper |
| CATALOG DESCRIPTION: | IDEAL, CRIMP CONNECTER, PRE-INSULATED, CONDUCTOR RANGE: 1 – 22 W/ 1 – 18 MIN, 1 -12 / 1 -16 MAX AWG, SIZE: MEDIUM, VOLTAGE RATING: 600 V, CONDUCTOR RANGE (MAIN/PRIMARY): 1 TO 6, MODEL: 49 |
| Category: | Coaxial & Twinaxial Connectors |
| Full Size Image | |
| Full Technical Description: | Pre-Insulated Type; Tin Plated Copper Material; (1) #22, (1) #18 min. Wire Combination Size; (1) #12, (1) #16 Max. Wire Combination Size; UL 486C, CSA C22.2 Approval; 600 Volt Voltage Rating; 105 Deg C Temperature Rating; 10000 Per Keg Standard Package; Nylon Insulation Material; Solid/Stranded Wire Type; RoHS Compliant; Overall Dimension 0.47 Inch Diameter X 0.82 Inch Length; Strip Length 3/8 Inch; Color White; Flammability Rating UL 94V-2; Application Pneumatic Crimp Tool, Pre-Insulated Crimp Application Machine, Crimpmaster Hand Tool |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 30-649 Pre-Insulated Crimp Connector Min. 1 #22 W/1 #18 Max. 1 #12 W/1 #16 |
| Sub-Category: | Crimp On Wire Connector |
| UNSPSC: | 39121448 |
| UPC 12 Digit: | 783250213832 |
| Unique Product Key: | 5608669 |
| comm code enhanced: | 64110 |
