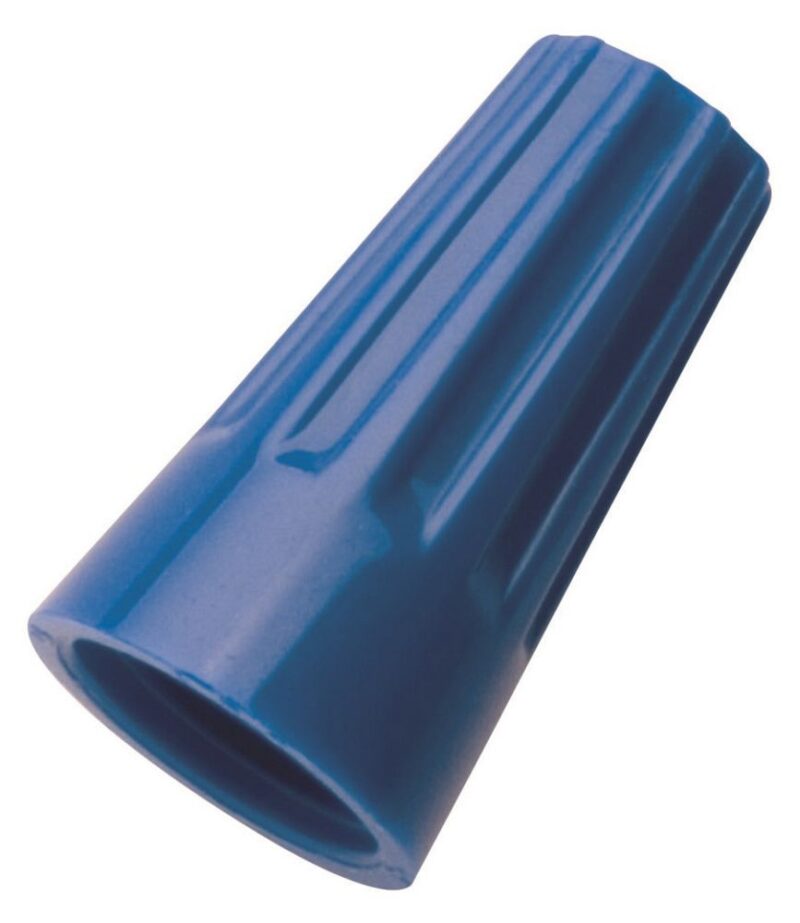

Ideal 30-072 Wire-Nut Wire Connector Model 72B Blue 100/Box
$12.51
Description:
Ideal 30-072 Wire-Nut Wire Connector, Model 72B Blue, 100/Box
Ideal 30-072 Wire-Nut Wire Connector, Model 72B Blue, 100/Box
Technical Description:
Blue Color; (2) 22 AWG min. Wire Combination Size; (1) 14 AWG Max. Wire Combination Size; 22 to 14 AWG Wire Size; UL, CSA Approval; 300 Volt Voltage Rating; Solid And/Or Stranded Wire Type; Zinc Plated Polypropylene Shell Material
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325030072 |
| Spring Type: | Fixed, Square Wire |
| Shell Material: | Zinc Plated Polypropylene |
| Color: | Blue |
| Approval: | UL, CSA |
| Additional Information: | RoHS Compliant; Insert Material Steel; Overall Dimension 0.39 Inch Diameter x 0.7 Inch Height |
| Catalog Number: | 30-072 |
| Brand Name: | WING-NUT[R] |
| Model: | 72B |
| Voltage Rating: | 300 Volt |
| Wire Type: | Solid and/or Stranded |
| Wire Size: | 22 to 14 AWG |
| Minimum Wire Combination Size: | (2) 22 AWG |
| Maximum Wire Combination Size: | (1) 14 AWG |
| CATALOG DESCRIPTION: | IDEAL, WIRE CONNECTOR, WIRE-NUT, TWIST-ON, NUMBER OF CONDUCTORS: 1 TO 5, CONDUCTOR RANGE: 22 – 14 AWG, MIN 2-16 MAX 3-16, COLOR: BLUE, MATERIAL: FLAME-RETARDANT POLYPROPELENE, VOLTAGE RATING: 300 V, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 F), MODEL NUMBER: 72B, FLAMMABILITY RATING: UL 94V-2 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Size Image | |
| Full Technical Description: | Blue Color; (2) 22 AWG min. Wire Combination Size; (1) 14 AWG Max. Wire Combination Size; 22 to 14 AWG Wire Size; UL, CSA Approval; 300 Volt Voltage Rating; Solid And/Or Stranded Wire Type; Zinc Plated Polypropylene Shell Material; Fixed, Square Wire Spring Type; Wire-Nut [R] Brand; RoHS Compliant; Insert Material Steel; Overall Dimension 0.39 Inch Diameter X 0.7 Inch Height; 72B Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Brochure | |
| Product Description: | Ideal 30-072 Wire-Nut Wire Connector, Model 72B Blue, 100/Box |
| Sub-Category: | Twist On Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 783250300723 |
| Unique Product Key: | 38172 |
| comm code enhanced: | 64200 |
