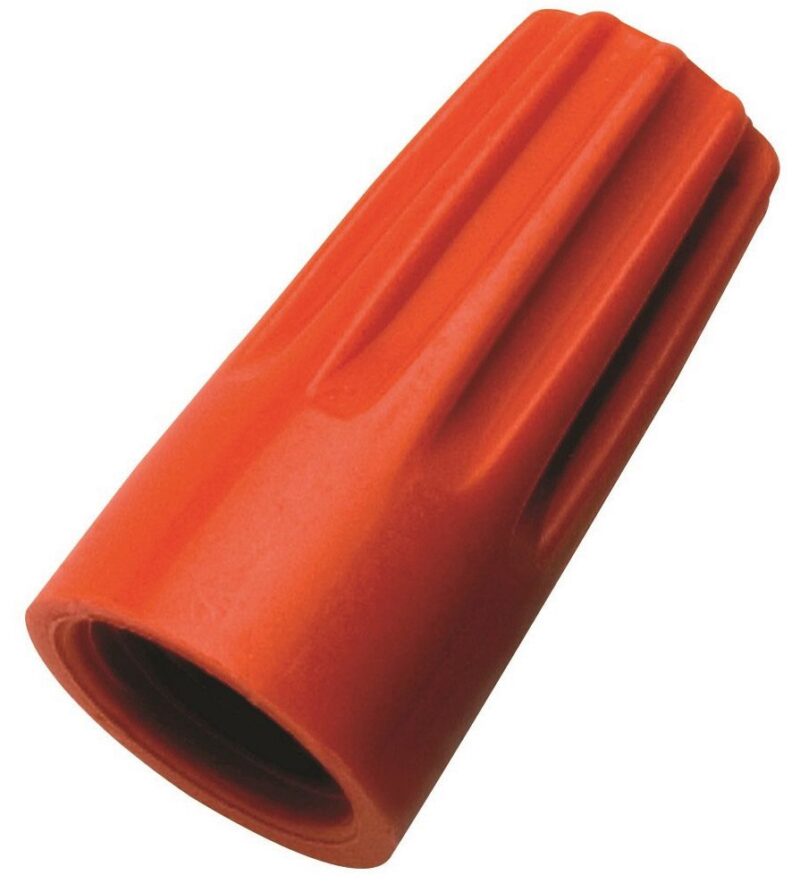

Ideal 30-273 Wire-Nut Wire Connector Model 73B Orange 500/Bag
$578.45
Description:
Ideal 30-273 Wire-Nut Wire Connector, Model 73B Orange, 500/Bag
Ideal 30-273 Wire-Nut Wire Connector, Model 73B Orange, 500/Bag
Technical Description:
Positive Grip Type; Orange Color; (1) #18 With (1) #20 min. Wire Combination Size; (2) #14 Max. Wire Combination Size; 22 to 14 AWG Wire Size; UL 486C, CSA, CE Approval; 600 Volt (Connector), 1000 Volt (Fixture/Sign) Voltage Rating
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325030273 |
| Maximum Wire Combination Size: | (2) #14 |
| Spring Type: | Fixed, Square Wire |
| Shell Material: | Polypropylene |
| Color: | Orange |
| Temperature Rating: | 105 Deg C |
| Standard Package: | 500 per Bag |
| Approval: | UL 774A/486C, CSA C22.2, CE |
| Additional Information: | RoHS Compliant; Overall Dimension 0.44 Inch Diameter x 0.86 Inch Height; Material Steel (Insert); Finish Zinc Plated; Application Residential, Commercial |
| Catalog Number: | 30-273 |
| Brand Name: | Wire-Nut[R] |
| Model: | 73B |
| Type: | Ribbed |
| Voltage Rating: | 600 Volt, 1000 Volt (Fixture/Sign) |
| Wire Type: | Copper |
| Wire Size: | 22 to 14 AWG |
| Minimum Wire Combination Size: | (1) #18 with (1) #20 |
| CATALOG DESCRIPTION: | IDEAL, WIRE CONNECTOR, WIRE-NUT, TWIST-ON, NUMBER OF CONDUCTORS: 1 TO 5, CONDUCTOR RANGE: 22 – 14 AWG, MIN 1-18 W/2-20 MAX 2-14, COLOR: ORANGE, MATERIAL: FLAME-RETARDANT POLYPROPELENE, VOLTAGE RATING: 600 V, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 DEG F), MODEL NUMBER: 73B, FLAMMABILITY RATING: UL 94V-2 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Size Image | |
| Full Technical Description: | Positive Grip Type; Orange Color; (1) #18 With (1) #20 min. Wire Combination Size; (2) #14 Max. Wire Combination Size; 22 to 14 AWG Wire Size; UL 486C, CSA, CE Approval; 600 Volt (Connector), 1000 Volt (Fixture/Sign) Voltage Rating; 221 Deg F Temperature Rating; 500 Per Bag Standard Package; Copper Wire Type; Zinc Plated Polypropylene Shell Material; Fixed, Square Wire Spring Type; Wire-Nut [R] Brand; RoHS Compliant ; Material Steel (Insert); 73B Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 30-273 Wire-Nut Wire Connector, Model 73B Orange, 500/Bag |
| Sub-Category: | Twist On Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 783250302734 |
| Unique Product Key: | 5608537 |
| comm code enhanced: | 64200 |
