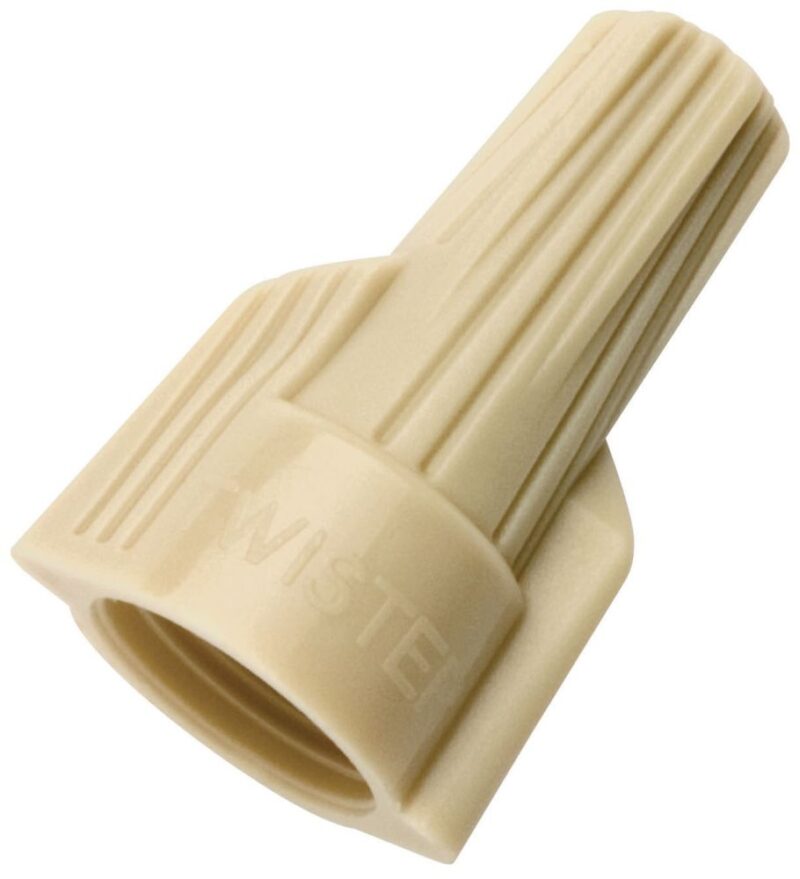

Ideal 30-341J Twister Wire Connector Model 341 Tan 750/Jar
$454.20
Description:
Ideal 30-341J Twister Wire Connector, Model 341 Tan, 750/Jar
Ideal 30-341J Twister Wire Connector, Model 341 Tan, 750/Jar
Technical Description:
Swept Wing, Ribbed Cap, Hex Head Type; Tan Color; (3) #22 min. Wire Combination Size; (3) #10 Max. Wire Combination Size; 22 to 8 AWG Wire Size; UL 486C, CSA C22.2, CE Approval; 600 Volt, 1000 Volt (Fixture/Sign) Voltage Rating
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325021674 |
| Maximum Wire Combination Size: | (3) #10 |
| Spring Type: | Expanding, Square Wire, Live Action |
| Shell Material: | Thermoplastic Polyester |
| Color: | Tan |
| Temperature Rating: | 105 Deg C |
| Standard Package: | 750 per Jar |
| Approval: | UL 486C, CSA C22.2, CE |
| Additional Information: | Insert Material Steel; Finish Zinc Plated; Strip Length 1/2 Inch; Overall Dimension 0.54 Inch Diameter x 0.72 Inch Width x 1.14 Inch Height; Applicable Standard IEC 998-2/998-2-4, Federal Specification W-S-610E |
| Catalog Number: | 30-341J |
| Brand Name: | Twister[R] |
| Model: | 341 |
| Type: | Swept Wing, Ribbed Cap, Hex Head |
| Voltage Rating: | 600 Volt, 1000 Volt (Fixture/Sign) |
| Wire Type: | Copper |
| Wire Size: | 22 to 8 AWG |
| Minimum Wire Combination Size: | (3) #22 |
| CATALOG DESCRIPTION: | IDEAL, WIRE CONNECTOR, TWISTER, CONDUCTOR RANGE: 22 – 8 AWG, 3/22 AWG MIN, 3/10 AWG MAX, NUMBER OF CONDUCTORS: 1 TO 6, MATERIAL: FLAME-RETARDANT POLYPROPELENE, COLOR: TAN, VOLTAGE RATING: 600 V, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 F), WIRE TYPE: CU/CU, MODEL NUMBER: 341 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Technical Description: | Swept Wing, Ribbed Cap, Hex Head Type; Tan Color; (3) #22 min. Wire Combination Size; (3) #10 Max. Wire Combination Size; 22 to 8 AWG Wire Size; UL 486C, CSA C22.2, CE Approval; 600 Volt, 1000 Volt (Fixture/Sign) Voltage Rating; 105 Deg C Temperature Rating; 750 Per Jar Standard Package; Copper Wire Type; Thermoplastic Polyester Shell Material; Expanding, Square Wire, Live Action Spring Type; Twister [R] Brand; Insert Material Steel; Finish Zinc Plated; Strip Length 1/2 Inch; Overall Dimension 0.54 Inch Diameter X 0.72 Inch Width X 1.14 Inch Height; Applicable Standard IEC 998-2/998-2-4, Federal Specification W-S-610E; 341 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 30-341J Twister Wire Connector, Model 341 Tan, 750/Jar |
| Sub-Category: | Twist On Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 783250216741 |
| Unique Product Key: | 5608576 |
| comm code enhanced: | 64200 |
