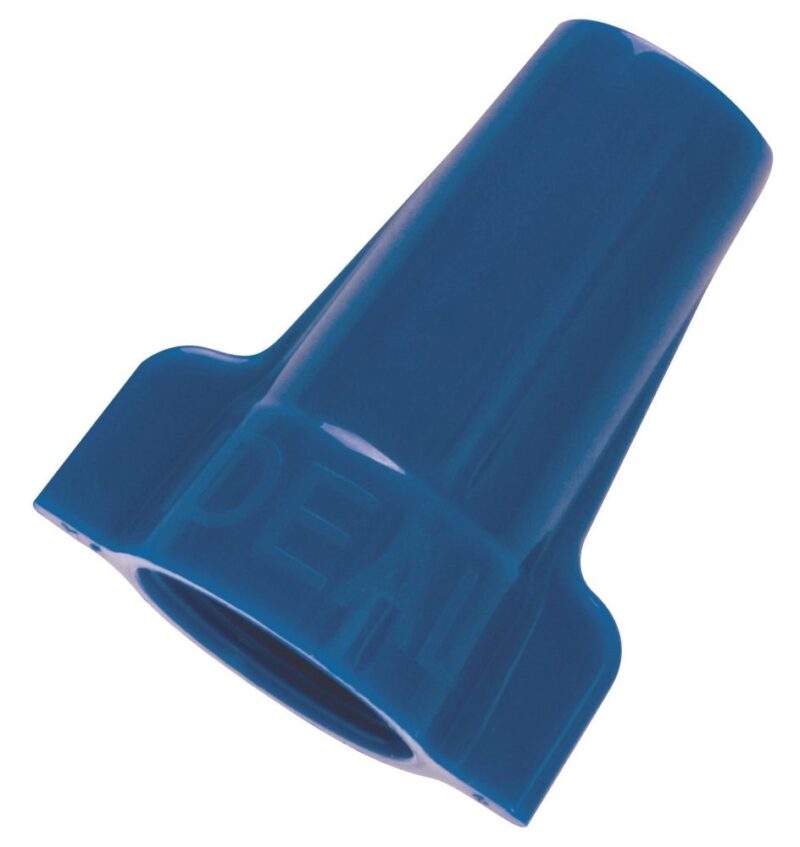

Ideal 30-454 Wing-Nut Wire Connector Model 454 Blue 25/Box
$14.85
Description:
Ideal 30-454 Wing-Nut Wire Connector, Model 454 Blue, 25/Box
Ideal 30-454 Wing-Nut Wire Connector, Model 454 Blue, 25/Box
Technical Description:
Contoured Wing Type; Blue Color; (5 to 6) 14 AWG min. Wire Combination Size; (1 to 2) 6 AWG Max. Wire Combination Size; 14 to 6 AWG Wire Size; UL, CSA, IEC Approval; 600 Volt Voltage Rating; 221 Deg F Temperature Rating; Solid And/Or Stranded Wire Type
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325030454 |
| Maximum Wire Combination Size: | (1 to 2) 6 AWG |
| Spring Type: | Live Action |
| Shell Material: | Zinc Plated Thermoplastic Polymer |
| Color: | Blue |
| Temperature Rating: | 221 Deg F |
| Approval: | UL, CSA, IEC |
| Additional Information: | RoHS Compliant; Insert Material Steel; Overall Dimension 1.2 Inch Width x 1.45 Inch Height; Strip Length 7/8 Inch |
| Catalog Number: | 30-454 |
| Brand Name: | WING-NUT[R] |
| Model: | 454 |
| Type: | Contoured Wing |
| Voltage Rating: | 600 Volt |
| Wire Type: | Solid and/or Stranded |
| Wire Size: | 14 to 6 AWG |
| Minimum Wire Combination Size: | (5 to 6) 14 AWG |
| CATALOG DESCRIPTION: | IDEAL, WIRE CONNECTOR, WING-NUT, TWIST-ON, NUMBER OF CONDUCTORS: 1 TO 6, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 F), CONDUCTOR RANGE: 14 – 6 AWG, MIN 3 – 12, MAX 1-6 W/2-8, MATERIAL: FLAME-RETARDANT POLYPROPELENE SHELL, COLOR: BLUE, VOLTAGE RATING: 600 V, MODEL NUMBER: 454, FLAMMABILITY RATING: UL94V-2 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Size Image | |
| Full Technical Description: | Contoured Wing Type; Blue Color; (5 to 6) 14 AWG min. Wire Combination Size; (1 to 2) 6 AWG Max. Wire Combination Size; 14 to 6 AWG Wire Size; UL, CSA, IEC Approval; 600 Volt Voltage Rating; 221 Deg F Temperature Rating; Solid And/Or Stranded Wire Type; Zinc Plated Thermoplastic Polymer Shell Material; Live Action Spring Type; Wing-Nut [R] Brand; RoHS Compliant; Insert Material Steel; Overall Dimension 1.2 Inch Width X 1.45 Inch Height; Strip Length 7/8 Inch; 454 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 30-454 Wing-Nut Wire Connector, Model 454 Blue, 25/Box |
| Sub-Category: | Twist On Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 783250304547 |
| Unique Product Key: | 38857 |
| comm code enhanced: | 64200 |
