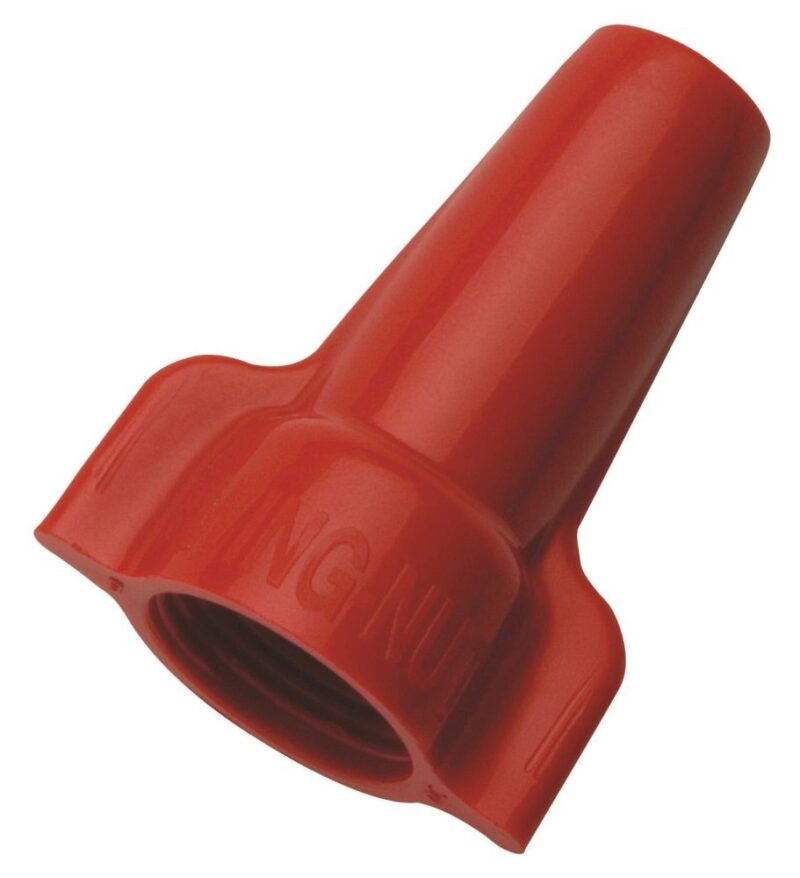

Ideal 30-852 Wing-Nut Wire Connector 452 Red 25 000/Barrel
$4,213.50
Description:
Ideal 30-852 Wing-Nut Wire Connector, 452 Red, 25,000/Barrel
Ideal 30-852 Wing-Nut Wire Connector, 452 Red, 25,000/Barrel
Technical Description:
Contoured Wing Type; Red Color; (2) #18 min. Wire Combination Size; (4) #10 Max. Wire Combination Size; 18 to 8 AWG Wire Size; UL, CSA, CE Approval; 600 V Voltage Rating; 221 Deg F Temperature Rating; 25000 Per Barrel Standard Package; Copper Wire Type
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325030852 |
| Maximum Wire Combination Size: | (4) #10 |
| Spring Type: | Live Action, Expanding, Square Wire |
| Color: | Red |
| Temperature Rating: | 221 Deg F |
| Standard Package: | 25000 per Barrel |
| Approval: | UL, CSA, CE |
| Catalog Number: | 30-852 |
| Brand Name: | Wing-Nut[R] |
| Model: | 452 |
| Type: | Contoured Wing |
| Voltage Rating: | 600 V |
| Wire Type: | Copper |
| Wire Size: | 18 to 8 AWG |
| Minimum Wire Combination Size: | (2) #18 |
| CATALOG DESCRIPTION: | IDEAL, WIRE CONNECTOR, WING-NUT, TWIST-ON, NUMBER OF CONDUCTORS: 2, 4, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 F), CONDUCTOR RANGE: 18 – 8 AWG, 18/2 AWG MIN, 10/4 AWG MAX, MATERIAL: FLAME-RETARDANT POLYPROPELENE, COLOR: RED, VOLTAGE RATING: 600 V, MODEL NUMBER: 452, FLAMMABILITY RATING: UL94V-2 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Size Image | |
| Full Technical Description: | Contoured Wing Type; Red Color; (2) #18 min. Wire Combination Size; (4) #10 Max. Wire Combination Size; 18 to 8 AWG Wire Size; UL, CSA, CE Approval; 600 V Voltage Rating; 221 Deg F Temperature Rating; 25000 Per Barrel Standard Package; Copper Wire Type; Live Action, Expanding, Square Wire Spring Type; WING-NUT[R] Brand; 452 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Brochure | |
| Product Description: | Ideal 30-852 Wing-Nut Wire Connector, 452 Red, 25,000/Barrel |
| Sub-Category: | Twist On Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 783250308521 |
| Unique Product Key: | 20088 |
| comm code enhanced: | 64200 |
