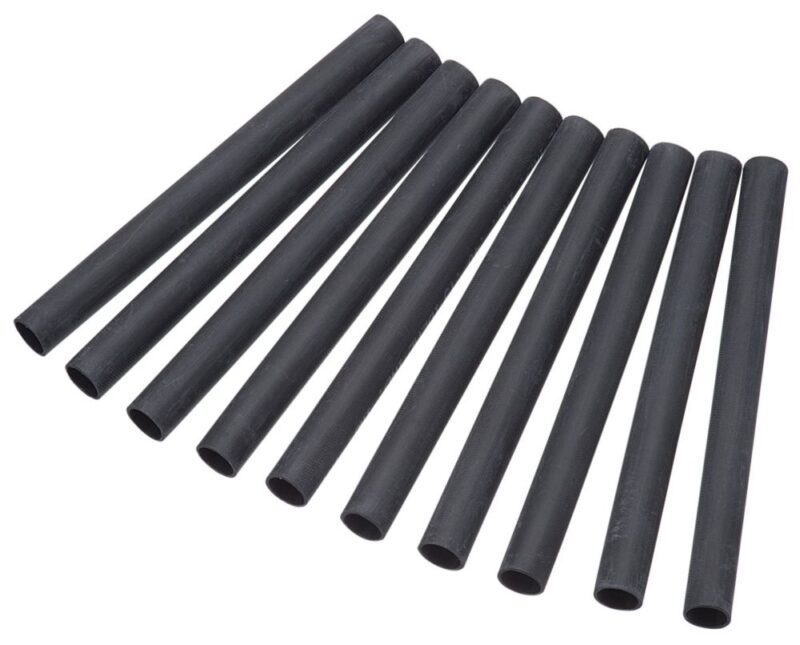

Ideal 46-344 Heat Shrink Thickwall 12-6 Awg 9″
$13.73
Description:
Ideal 46-344 Heat Shrink Thickwall 12-6 Awg 9″
Ideal 46-344 Heat Shrink Thickwall 12-6 Awg 9″
Technical Description:
Heat Type; Cross-Linked Polyolefin Material; 9 Inch; 0.4 Inch min. Expanded Diameter; 0.13 Inch Max. Recovered Diameter; 12 to 8 AWG Cable Size; UL 486D, CSA C22.2 Approval; 600 Volt Voltage Rating; 0.07 Inch Thickness
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325046344 |
| Material: | Cross-Linked Polyolefin |
| Shrink Ratio: | 3:1 |
| Minimum Expanded Diameter: | 0.4 Inch |
| Maximum Recovered Diameter: | 0.13 Inch |
| Length: | 9 Inch |
| Thickness: | 0.07 Inch |
| Temperature Rating: | -55 to 110 Deg C |
| Approval: | UL 486D, CSA C22.2 |
| Additional Information: | Tensile Strength 2100 PSI; Specific Gravity 1.2; Dielectric Strength 500 Volt/Mil; Applicable Standard MIL-DTL-23053/15, IEEE 383, ANSI C37.20.2/C119.1, ICEA S-19-8, NEMA |
| Catalog Number: | 46-344 |
| Brand Name: | Thermo-Shrink[R] |
| Model: | TS-46-400 |
| Type: | Heat |
| Voltage Rating: | 600 Volt |
| Cable Size: | 12 to 8 AWG |
| Wall Type: | Heavy |
| Shrink Temperature: | 120 to 250 Deg C |
| CATALOG DESCRIPTION: | IDEAL, HEAT SHRINKABLE TUBE, THERMO-SHRINK, HEAVY-WALL HEAT SHRINK TUBING, SHRINK RATIO: 3:1, THICKNESS: 060 IN, LENGTH: 9 IN, DIELECTRIC STRENGTH: 500 V/MIL (20 KV MINT), VOLUME RESISTIVITY: 1013 OHM -CM MIN, CONTINUOUS OPERATING TEMPERATURE: -55 TO 110 DEG C, MINIMUM SHRINK TEMPERATURE: 120 – 250 DEG C (200 DEG C RECOMMENDED), LOW TEMPERATURE FLEXIBILITY: -55 DEG C, HEAT SHOCK: NO CRACKS, FLOWING OR DRIPPING (4 HR AT 225 DEG C), WATER ABSORPTION: 0.5 PCT, HEAT AGING: 500 PCT (168 HR AT 175 DEG C TENSILE STRENGTH ELONGATION), CABLE RANGE: 8 – 6 AWG, NOMINAL RECOVEREDI.D. (MAX.): 0.150 IN, EXPANDED I.D. (MIN.): 0.400, COPPER CORROSION: NON-CORROSIVE, ULTIMATE ELONGATION: 600 PCT MIN., MODEL: TS-46-400 |
| Category: | Insulating Materials |
| Full Technical Description: | Heat Type; Cross-Linked Polyolefin Material; 9 Inch; 0.4 Inch min. Expanded Diameter; 0.13 Inch Max. Recovered Diameter; 12 to 8 AWG Cable Size; UL 486D, CSA C22.2 Approval; 600 Volt Voltage Rating; 0.07 Inch Thickness; -55 to 110 Deg C Temperature Rating; 3:1 Shrink Ratio; Heavy Wall Type; 120 to 250 Deg C Shrink Temperature; THERMO-SHRINK[R] Brand; Tensile Strength 2100 psi; Specific Gravity 1.2; Dielectric Strength 500 Volt/Mil; Applicable Standard mil-Dtl-23053/15, IEEE 383, ANSI C37.20.2/C119.1, ICEA S-19-8, NEMA; TS-46-400 Model |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 46-344 Heat Shrink Thickwall 12-6 Awg 9″ |
| Sub-Category: | Individual Cable Tubing |
| UNSPSC: | 39121723 |
| UPC 12 Digit: | 783250463442 |
| Unique Product Key: | 2780 |
| comm code enhanced: | 64340 |
