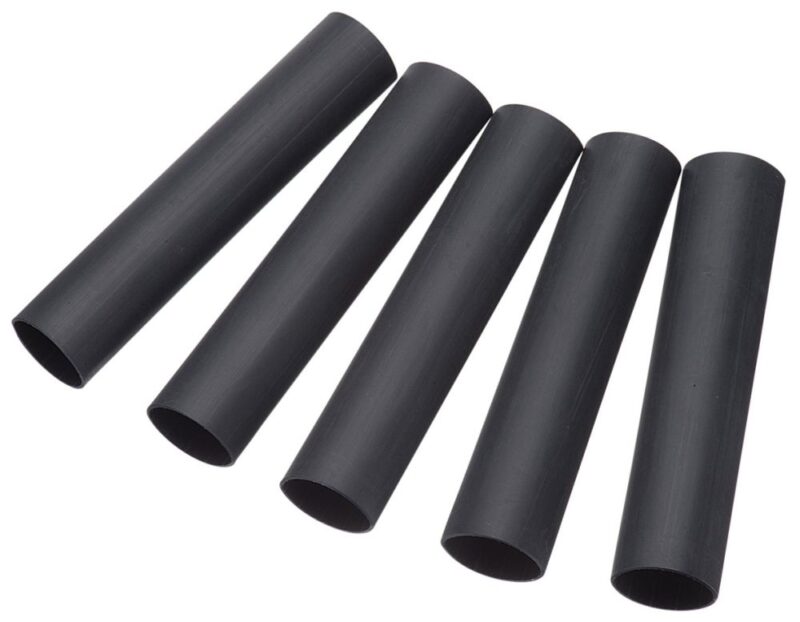

Ideal 46-357 Heat Shrink Thickwall 4/0-400 Mcm 12″
$219.87
Description:
Ideal 46-357 Heat Shrink Thickwall 4/0-400 Mcm 12″
Ideal 46-357 Heat Shrink Thickwall 4/0-400 Mcm 12″
Technical Description:
Heat Type; Crosslinked Polyolefin Material; 12 Inch; 1.5 Inch min. Expanded Diameter; 0.47 Inch Max. Recovered Diameter; 2/0 AWG to 350 kcmil Cable Size; UL 486D, CSA C22.2 Approval; 600 Volt Voltage Rating; 0.16 Inch Thickness
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325046357 |
| Shrink Ratio: | 3:1 |
| Minimum Expanded Diameter: | 1.5 Inch |
| Maximum Recovered Diameter: | 0.47 Inch |
| Length: | 12 Inch |
| Thickness: | 0.16 Inch |
| Temperature Rating: | -55 to 110 Deg C |
| Approval: | UL 486D, CSA C22.2 |
| Additional Information: | Tensile Strength 2100 PSI; Specific Gravity 1.2 Maximum; Low Temperature Brittle Point -55 Deg C; Dielectric Strength 500 Volt/Mil; Application Above Grade, Underground or Underwater Splicing; Applicable Standard MIL-DTL-23053/15, IEEE 383, ANSI C37.20.2, |
| Catalog Number: | 46-357 |
| Brand Name: | Thermo-Shrink[R] |
| Type: | Heat |
| Voltage Rating: | 600 Volt |
| Cable Size: | 2/0 AWG to 350 KCMIL |
| Wall Type: | Heavy |
| Shrink Temperature: | 120 to 250 Deg C |
| Material: | Crosslinked Polyolefin |
| CATALOG DESCRIPTION: | IDEAL, HEAT SHRINKABLE TUBE, THERMO-SHRINK, HEAVY-WALL HEAT SHRINK TUBING, SHRINK RATIO: 3:1, THICKNESS: 0.160 IN, LENGTH: 12 IN, VOLUME RESISTIVITY: 1013 OHM -CM MIN, DIELECTRIC STRENGTH: 500 V/MIL (20 KV MINT), CONTINUOUS OPERATING TEMPERATURE: -55 TO 110 DEG C, MINIMUM SHRINK TEMPERATURE: 120 – 250 DEG C (200 DEG C RECOMMENDED), LOW TEMPERATURE FLEXIBILITY: -55 DEG C, HEAT SHOCK: NO CRACKS, FLOWING OR DRIPPING (4 HR AT 225 DEG C), WATER ABSORPTION: 0.5 PCT, HEAT AGING: 500 PCT (168 HR AT 175 DEG C TENSILE STRENGTH ELONGATION), CABLE RANGE: 2/0 AWG – 350 MCM, NOMINAL RECOVEREDI.D. (MAX.): 0.470 IN, EXPANDED I.D. (MIN.): 1.500, COPPER CORROSION: NON-CORROSIVE, ULTIMATE ELONGATION: 600 PCT MIN., MODEL: TS-46-1500 |
| Category: | Insulating Materials |
| Full Technical Description: | Heat Type; Crosslinked Polyolefin Material; 12 Inch; 1.5 Inch min. Expanded Diameter; 0.47 Inch Max. Recovered Diameter; 2/0 AWG to 350 kcmil Cable Size; UL 486D, CSA C22.2 Approval; 600 Volt Voltage Rating; 0.16 Inch Thickness; -55 to 110 Deg C Temperature Rating; 3:1 Shrink Ratio; Heavy Wall Type; 120 to 250 Deg C Shrink Temperature; THERMO-SHRINK[R] Brand; Tensile Strength 2100 psi; Specific Gravity 1.2 Maximum; Low Temperature Brittle Point -55 Deg C; Dielectric Strength 500 Volt/Mil; Application Above Grade, Underground or Underwater Splicing; Applicable Standa |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 46-357 Heat Shrink Thickwall 4/0-400 Mcm 12″ |
| Sub-Category: | Individual Cable Tubing |
| UNSPSC: | 39121723 |
| UPC 12 Digit: | 783250463572 |
| Unique Product Key: | 5582220 |
