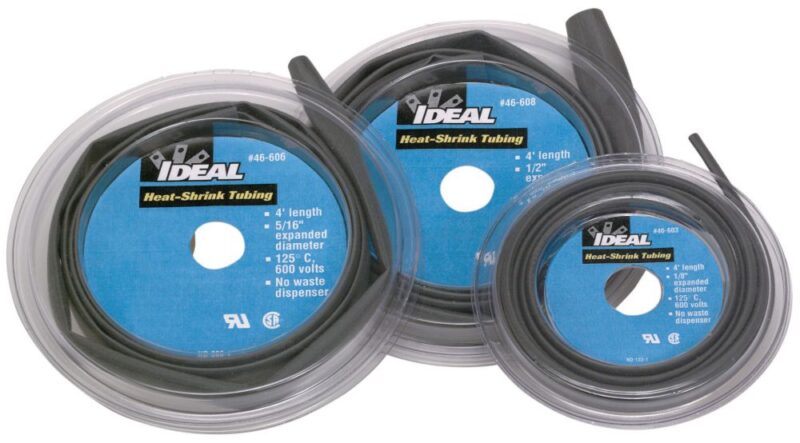

Ideal 46-603 Heat Shrink Disk 4Ft L. 1/8″ I.D.
$110.30
Description:
Ideal 46-603 Heat Shrink Disk, 4Ft L., 1/8″ I.D.
Ideal 46-603 Heat Shrink Disk, 4Ft L., 1/8″ I.D.
Technical Description:
Heat Type; Polyolefin Material; 4 Foot; 0.146 Inch min. Expanded Diameter; 0.063 Inch Max. Recovered Diameter; 24 to 20 AWG Cable Size; UL 224/486D Approval; 600 Volt Voltage Rating; 0.017 Inch Thickness; -55 to 125 Deg C Temperature Rating
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325046603 |
| Shrink Ratio: | 2:1 |
| Minimum Expanded Diameter: | 0.146 Inch |
| Maximum Recovered Diameter: | 0.063 Inch |
| Length: | 4 Foot |
| Thickness: | 0.017 Inch |
| Temperature Rating: | -55 to 125 Deg C |
| Approval: | UL 224/486D |
| Additional Information: | RoHS compliant; Nominal Size 1/8 Inch; Tensile Strength 14 MPa; Dielectric Strength 20 Kilovolt/Meter; Longitudinal Shrinkage 0+/-5 Percent; Eccentricity 30 Percent; Applicable Standard ASTM D638/D150/D876 |
| Catalog Number: | 46-603 |
| Brand Name: | Ideal |
| Type: | Heat |
| Voltage Rating: | 600 Volt |
| Cable Size: | 24 to 20 AWG |
| Wall Type: | Thin |
| Shrink Temperature: | 70 Deg C |
| Material: | Polyolefin |
| CATALOG DESCRIPTION: | IDEAL, HEAT SHRINKABLE TUBE, THERMO-SHRINK, THIN-WALL, SHRINK RATIO: 2:1, INSIDE DIAMETER: 1/8 IN, THICKNESS: 017 IN, LENGTH: 4 FT, DIELECTRIC STRENGTH: ASTM D 150, 20 KV/MM, VOLUME RESISTIVITY: 1014 OHM CM FOR ASTM D 876 TEST METHOD, CONTINUOUS OPERATING TEMPERATURE: -55 TO 125 DEG C, MINIMUM SHRINK TEMPERATURE: 70 DEG C, HEAT SHOCK: UL 224, NO CRACKING (250 DEG C/4 HR), CABLE RANGE: 24 – 20 AWG, NOMINAL RECOVEREDI.D. (MAX.): 063 IN, EXPANDED I.D. (MIN.): 0.146, ELONGATION AT BREAK: 600 PCT ASTM D 638, ELONGATION OF BREAK AFTER AGING: 350 PCT FOR UL 224 TEST METHOD, COLD BEND TEST (-55C/4 HOURS): NO CRACKING FOR UL 224 TEST METHOD, COPPER CORROSION: PASS FOR UL 224 TEST METHOD, CHEMICAL RESISTANCE: PASS FOR UL 224 TEST METHOD, LONGITUDINAL SHRINKAGE: 0 PLUS OR MINUS 5 PCT FOR UL 224 TEST METHOD, ECCENTRICITY: 30 PCT FOR UL 224 TEST METHOD, NORMAL SIZE: 1/8 IN, PACKAGE: DISK |
| Category: | Insulating Materials |
| Full Technical Description: | Heat Type; Polyolefin Material; 4 Foot; 0.146 Inch min. Expanded Diameter; 0.063 Inch Max. Recovered Diameter; 24 to 20 AWG Cable Size; UL 224/486D Approval; 600 Volt Voltage Rating; 0.017 Inch Thickness; -55 to 125 Deg C Temperature Rating; 2:1 Shrink Ratio; Thin Wall Type; 70 Deg C Shrink Temperature; Thermo-Shrink [R] Brand; RoHS Compliant; Nominal Size 1/8 Inch; Tensile Strength 14 Mpa; Die |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 46-603 Heat Shrink Disk, 4Ft L., 1/8″ I.D. |
| Sub-Category: | Individual Cable Tubing |
| UNSPSC: | 39121723 |
| UPC 12 Digit: | 783250466030 |
| Unique Product Key: | 5602906 |
