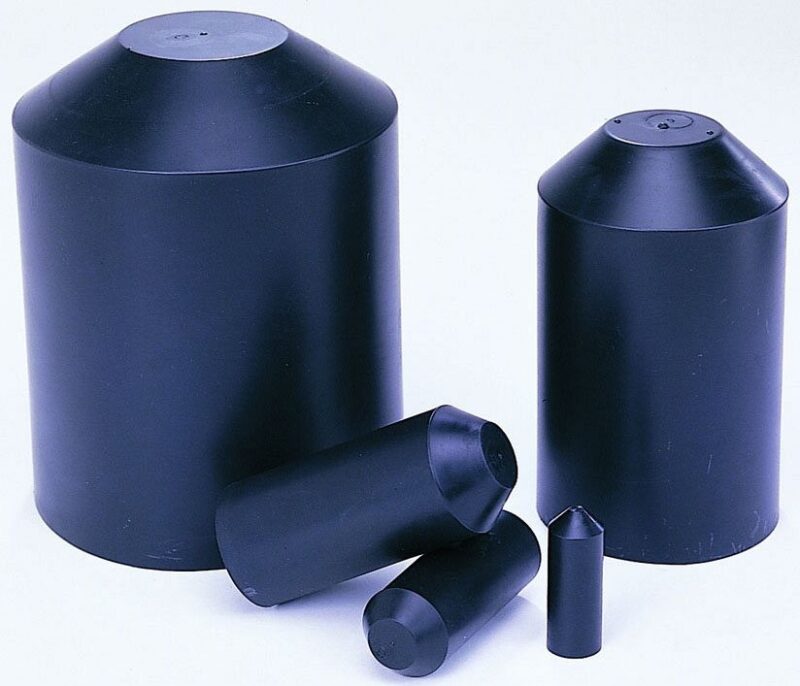

Ideal 46-382 Heat Shrink End Cap 4″ Length Fits 2/0 Awg – 500 Mcm Cable
$78.10
Description:
Ideal 46-382 Heat Shrink End Cap 4″ Length, Fits 2/0 Awg – 500 Mcm Cable
Ideal 46-382 Heat Shrink End Cap 4″ Length, Fits 2/0 Awg – 500 Mcm Cable
Technical Description:
Cross-Linked Polyolefin Material; Black Color; 2.76 Inch; 0.98 Inch ID min. Expanded Diameter; 0.31 Inch ID Max. Recovered Diameter; 0.39 Inch min. Wire Size; 0.71 Inch Max. Wire Size; 1000 V Voltage Rating; -55 to 110 Deg C Temperature Range
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325046382 |
| Minimum Wire Size: | 0.39 Inch |
| Maximum Wire Size: | 0.71 Inch |
| Material: | Cross-Linked Polyolefin |
| Color: | Black |
| Length: | 2.76 Inch |
| Additional Information: | Density 1.05 Gram/Cu CM; Volume Resistance 1014 Ohm CM |
| Catalog Number: | 46-382 |
| Brand Name: | Thermo-Shrink[R] |
| Voltage Rating: | 1000 V |
| Temperature Range: | -55 to 110 Deg C |
| Shrink Temperature: | 120 Deg C |
| Wall Type: | Medium |
| Minimum Expanded Diameter: | 0.98 Inch ID |
| Maximum Recovered Diameter: | 0.31 Inch ID |
| CATALOG DESCRIPTION: | IDEAL, HEAT SHRINKABLE TUBE, THERMO-SHRINK, MEDIUM-WALL HEAT SHRINK, THICKNESS: 091 IN, LENGTH: 4 (END CAP) IN, VOLUME RESISTIVITY: 1014 OHM.CM FOR IEC 93, DIELECTRIC STRENGTH: LESS THAN 15 KV/MM IEC 243, CONTINUOUS OPERATING TEMPERATURE: -55 DEG CC TO 110 DEG C IEC 216, CABLE RANGE: 2/0 AWG – 500 MCM, NOMINAL RECOVEREDI.D. (MAX.): 0.310 IN, EXPANDED I.D. (MIN.): 0.980, ELONGATION AT BREAK: ASTM D 638, LESS THAN 400%, ELONGATION OF BREAK AFTER AGING: LESS THAN 300 PCT 150 DEG C, 168 HR |
| Category: | Insulating Materials |
| Full Size Image | |
| Full Technical Description: | Cross-Linked Polyolefin Material; Black Color; 2.76 Inch; 0.98 Inch ID min. Expanded Diameter; 0.31 Inch ID Max. Recovered Diameter; 0.39 Inch min. Wire Size; 0.71 Inch Max. Wire Size; 1000 V Voltage Rating; -55 to 110 Deg C Temperature Range; Medium Wall Type; 120 Deg C Shrink Temperature; THERMO-SHRINK[R] Brand; Density 1.05 Gram/Cu cm; Volume Resistance 1014 Ohm cm |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 46-382 Heat Shrink End Cap 4″ Length, Fits 2/0 Awg – 500 Mcm Cable |
| Sub-Category: | Shrink Tubing Cap |
| UNSPSC: | 39121723 |
| UPC 12 Digit: | 783250463824 |
| Unique Product Key: | 5609622 |
| comm code enhanced: | 64340 |
