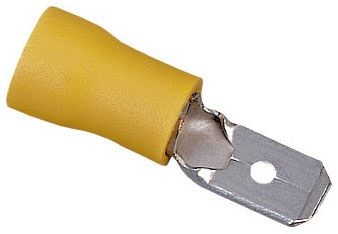

Ideal 83-9991 Terminal Male Disconnect Vinyl #12 To #10 Awg
$14.11
Description:
Ideal 83-9991 Terminal Male Disconnect Vinyl, #12 To #10 Awg
Ideal 83-9991 Terminal Male Disconnect Vinyl, #12 To #10 Awg
Technical Description:
Funnel Entry Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 774A, CUL Approval; 75 Deg C Temperature Rating; 25 Per Carton Standard Package; Vinyl Insulated Insulation Type; 0.25 Inch X 0.032 Inch Tab Size
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325049079 |
| Standard Package: | 25 per Carton |
| Approval: | UL 774A, CUL |
| Additional Information: | Barrel Type Brazed/Butted Seam; Material Tin-Plated Brass; Voltage Rating 300 V; Wire Insulation Diameter 0.244 Inch |
| Catalog Number: | 83-9991 |
| Type: | Funnel Entry |
| Tab Size: | 0.25 Inch x 0.032 Inch |
| Minimum Conductor Size: | 12 AWG |
| Maximum Conductor Size: | 10 AWG |
| Color: | Yellow |
| Insulation Type: | Vinyl Insulated |
| Temperature Rating: | 75 Deg C |
| CATALOG DESCRIPTION: | IDEAL, MALE TERMINAL, CABLE SIZE: 12 – 10 AWG, INSULATION: VINYL INSULATED, TAB SIZE: 0.250 X 032 IN |
| Category: | Small Terminals & Connectors |
| Full Size Image | |
| Full Technical Description: | Funnel Entry Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 774A, CUL Approval; 75 Deg C Temperature Rating; 25 Per Carton Standard Package; Vinyl Insulated Insulation Type; 0.25 Inch X 0.032 Inch Tab Size; Barrel Type Brazed/Butted Seam; Material Tin-Plated Brass; Voltage Rating 300 V; Wire Insulation Diameter 0.244 Inch |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 83-9991 Terminal Male Disconnect Vinyl, #12 To #10 Awg |
| Sub-Category: | Male Disconnect |
| UNSPSC: | 39121405 |
| UPC 12 Digit: | 783250490790 |
| Unique Product Key: | 5610014 |
| comm code enhanced: | 64110 |
