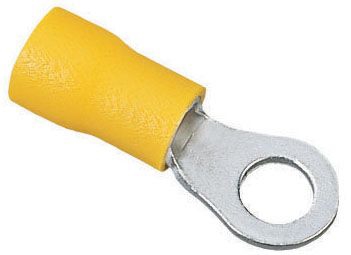

Ideal 83-2341 Terminal Vinyl Ring 12-10 Awg10- 25 Pk
$13.08
Description:
Ideal 83-2341 Terminal Vinyl Ring 12-10 Awg10- 25 Pk
Ideal 83-2341 Terminal Vinyl Ring 12-10 Awg10- 25 Pk
Technical Description:
Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CUL Approval; 75 Deg C Temperature Rating; 25 Standard Package; #10 Stud Size; Vinyl Insulated Insulation Type; Material Tin Plated Brass; Butted Seam Prevent Splitting
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325048987 |
| Approval: | UL, CUL |
| Additional Information: | MATERIAL TIN PLATED BRASS; BUTTED SEAM PREVENT SPLITTING; WIRE INSULATION DIAMETER 0.248 INCH |
| Catalog Number: | 83-2341 |
| Minimum Conductor Size: | 12 AWG |
| Maximum Conductor Size: | 10 AWG |
| Color: | Yellow |
| Insulation Type: | Vinyl Insulated |
| Stud Size: | #10 |
| Temperature Rating: | 75 Deg C |
| Standard Package: | 25 |
| CATALOG DESCRIPTION: | IDEAL, RING TERMINAL, VINYL RING, CABLE SIZE: 12 – 10 AWG, NUMBER OF HOLES: 1, STUD SIZE: 10 IN, MATERIAL: TIN PLATED BRASS, INSULATION: VINYL INSULATED |
| Category: | Small Terminals & Connectors |
| Full Size Image | |
| Full Technical Description: | Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CUL Approval; 75 Deg C Temperature Rating; 25 Standard Package; #10 Stud Size; Vinyl Insulated Insulation Type; Material Tin Plated Brass; Butted Seam Prevent Splitting; Wire Insulation Diameter 0.248 Inch |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 83-2341 Terminal Vinyl Ring 12-10 Awg10- 25 Pk |
| Sub-Category: | Ring Lug |
| UNSPSC: | 39121405 |
| UPC 12 Digit: | 783250489879 |
| Unique Product Key: | 5609937 |
| comm code enhanced: | 64110 |
