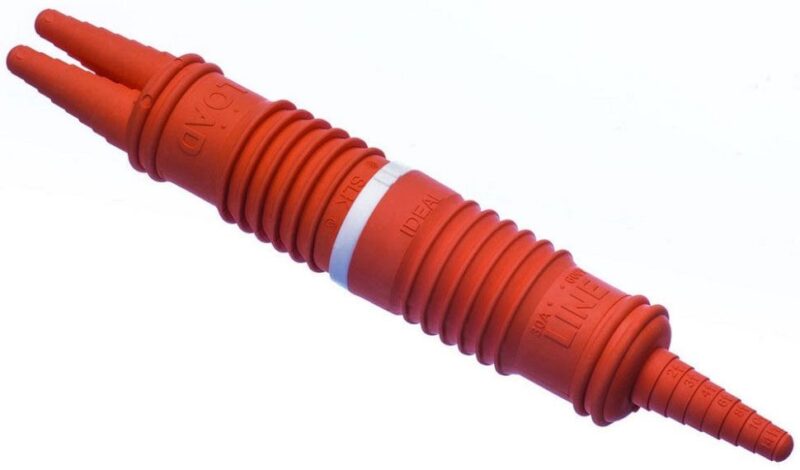

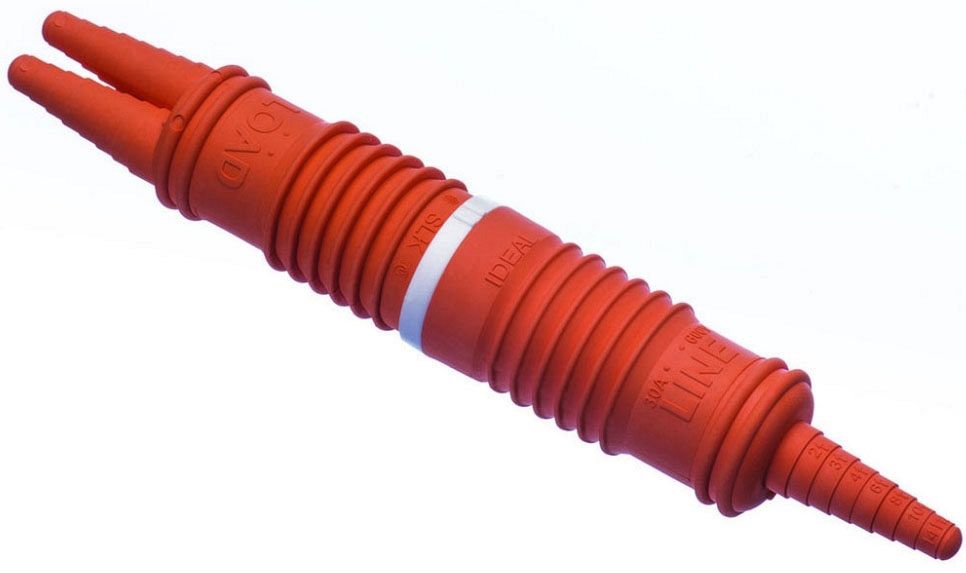

Ideal 30-C1226N SLK In-Line Breakaway Crimp 1 Line/2 Load
$58.41
Description:
Ideal 30-C1226N SLK In-Line Breakaway Crimp,1 Line/2 Load
Ideal 30-C1226N SLK In-Line Breakaway Crimp,1 Line/2 Load
Technical Description:
Breakaway Y-Tap Kit Type; UL 486A/486B/486D/498/1682 Approval; Crimp-on Connector Type; 600 Volt Voltage Rating; 30 Amp Current Rating; Single (Line), Double (Load), Non-Fused, Neutral Construction; Polypropylene Housing Material; SLK[R] Brand
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325074217 |
| Approval: | UL 486A/486B/486D/498/1682 |
| Additional Information: | Acceptable Fuse Size 13/32 Inch x 1-1/2 Inch; Wire Size 4 to 2 AWG (Line), 14 to 10 AWG (Load); Temperature 105 Deg C; Application Roadway, Street, Parking and Area Lighting |
| Catalog Number: | 30-C1226N |
| Brand Name: | SLK[R] |
| Type: | Breakaway Y-Tap Kit |
| Voltage Rating: | 600 Volt |
| Current Rating: | 30 Amp |
| Construction: | Single (Line), Double (Load), Non-Fused, Neutral |
| Connector Type: | Crimp-On |
| Housing Material: | Polypropylene |
| CATALOG DESCRIPTION: | SLK,CR,NON-FUSED,1W LI 2W LO |
| Category: | Splicing & Terminating Kits |
| Full Size Image | |
| Full Technical Description: | Breakaway Y-Tap Kit Type; UL 486A/486B/486D/498/1682 Approval; Crimp-on Connector Type; 600 Volt Voltage Rating; 30 Amp Current Rating; Single (Line), Double (Load), Non-Fused, Neutral Construction; Polypropylene Housing Material; SLK[R] Brand; Acceptable Fuse Size 13/32 Inch X 1-1/2 Inch; Wire Size 4 to 2 AWG (Line), 14 to 10 AWG (Load); Temperature 105 Deg C; Application Roadway, Street, Parking and Area Lighting |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 30-C1226N SLK In-Line Breakaway Crimp,1 Line/2 Load |
| Sub-Category: | Street Lighting Crimp Connector Kit |
| UNSPSC: | 39121446 |
| UPC 12 Digit: | 783250742172 |
| Unique Product Key: | 6168173 |
| comm code enhanced: | 64130 |
