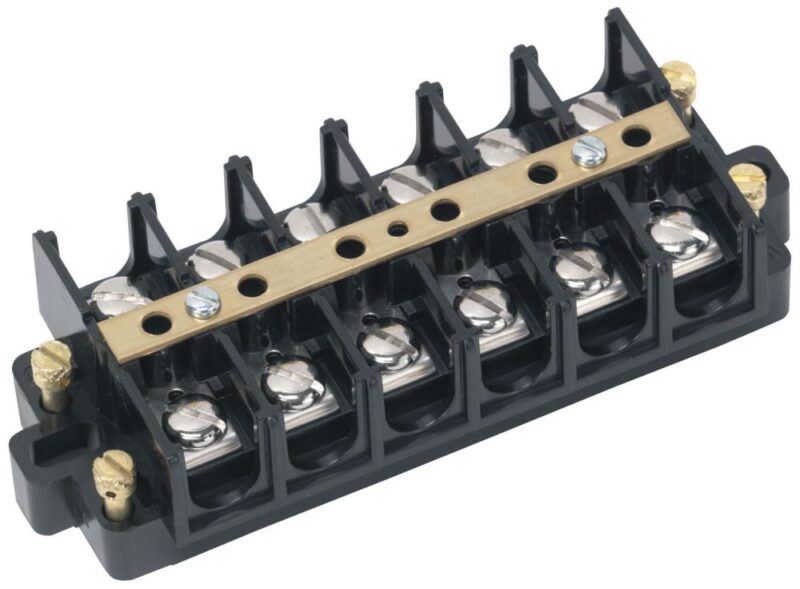

Ideal 89-507 Base Mount Double Row Terminal Block 6Pl
$56.48
Description:
Ideal 89-507 Base Mount Double Row Terminal Block 6Pl
Ideal 89-507 Base Mount Double Row Terminal Block 6Pl
Technical Description:
Center Spacing Type; 5 Inch Length Size; White Color; 22 to 6 AWG Wire Size; UL, CSA Approval; 600 Volt Voltage Rating; Screw Mounting; 60 Amp Current Rating; Rugged Polyester Thermoplastic Housing Material; #10-32 TPI Philps Slotted Screw Terminal Type
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325089507 |
| Size: | 5 Inch Length |
| Housing Material: | Rugged Polyester Thermoplastic |
| Color: | White |
| Mounting: | Screw |
| Approval: | UL, CSA |
| Additional Information: | TORQUE RATING 20 INCH-LB; CENTER SPACING 0.625 INCH |
| Catalog Number: | 89-507 |
| Model: | 89-500 |
| Type: | Center Spacing |
| Number of Circuits: | 6 |
| Voltage Rating: | 600 Volt |
| Current Rating: | 60 Amp |
| Wire Size: | 22 to 6 AWG |
| Terminal Type: | #10-32 TPI Philps Slotted Screw |
| CATALOG DESCRIPTION: | IDEAL, TERMINAL STRIP, WIRE SIZE: 22 – 6 AWG, SPACING: 0.625 IN, AMPERAGE RATING: 60 AMP, VOLTAGE RATING: 600 V, MATERIAL: NICKLE-PLATED BRASS, NUMBER OF CIRCUITS: 6, TORQUE RATING: 20 IN-LB, TERMINAL SCREW SIZE: 6 |
| Category: | Terminal Blocks & Accessories |
| Full Size Image | |
| Full Technical Description: | Center Spacing Type; 5 Inch Length Size; White Color; 22 to 6 AWG Wire Size; UL, CSA Approval; 600 Volt Voltage Rating; Screw Mounting; 60 Amp Current Rating; Rugged Polyester Thermoplastic Housing Material; #10-32 TPI Philps Slotted Screw Terminal Type; 6 Circuit(S); Torque Rating 20 Inch-lb; Center Spacing 0.625 Inch; 89-500 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Brochure | |
| Product Description: | Ideal 89-507 Base Mount Double Row Terminal Block 6Pl |
| Sub-Category: | Terminal Strip |
| UNSPSC: | 39121407 |
| UPC 12 Digit: | 783250895076 |
| Unique Product Key: | 5610188 |
| comm code enhanced: | 64400 |
