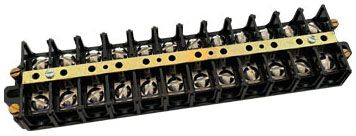

Ideal 89-513 Terminal Strip 12-Circuit 600V 60A #22 To #6 Awg Shorting
$124.24
Description:
Ideal 89-513 Terminal Strip, 12-Circuit, 600V, 60A, #22 To #6 Awg, Shorting
Ideal 89-513 Terminal Strip, 12-Circuit, 600V, 60A, #22 To #6 Awg, Shorting
Technical Description:
Center Spacing, Shorting Type; Black Color; 22 to 6 AWG (Copper) Wire Size; UL, CSA Approval; 600 V (Ul/Csa) Voltage Rating; Surface Mounting; 60 Ampere (Ul/Csa) Current Rating; No Cover Type; -40 to 130 Deg C Temperature Rating
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325089513 |
| Cover Type: | No |
| Temperature Rating: | -40 to 130 Deg C |
| Housing Material: | Rugged Polyester Thermoplastic |
| Color: | Black |
| Mounting: | Surface |
| Approval: | UL, CSA |
| Additional Information: | Torque Rating 20 Lb-Inch; Center Spacing 0.625 Inch; Screw Material Nickel Plated Brass |
| Catalog Number: | 89-513 |
| Model: | 89-500 |
| Type: | Center Spacing, Shorting |
| Number of Circuits: | 12 |
| Voltage Rating: | 600 V (UL/CSA) |
| Current Rating: | 60 Ampere (UL/CSA) |
| Wire Size: | 22 to 6 AWG (Copper) |
| Terminal Type: | #10-32 TPI Slotted Screw |
| CATALOG DESCRIPTION: | IDEAL, TERMINAL STRIP, WIRE SIZE: 22 – 6 AWG, SPACING: 0.625 IN, AMPERAGE RATING: 60 AMP, VOLTAGE RATING: 600 V, MATERIAL: NICKLE-PLATED BRASS, NUMBER OF CIRCUITS: 12, TORQUE RATING: 20 IN-LB, TERMINAL SCREW SIZE: 12 |
| Category: | Terminal Blocks & Accessories |
| Full Size Image | |
| Full Technical Description: | Center Spacing, Shorting Type; Black Color; 22 to 6 AWG (Copper) Wire Size; UL, CSA Approval; 600 V (Ul/Csa) Voltage Rating; Surface Mounting; 60 Ampere (Ul/Csa) Current Rating; No Cover Type; -40 to 130 Deg C Temperature Rating; Rugged Polyester Thermoplastic Housing Material; #10-32 TPI Slotted Screw Terminal Type; 12 Circuit(S); Torque Rating 20 lb-Inch; Center Spacing 0.625 Inch; Screw Material Nickel Plated Brass; 89-500 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Brochure | |
| Product Description: | Ideal 89-513 Terminal Strip, 12-Circuit, 600V, 60A, #22 To #6 Awg, Shorting |
| Sub-Category: | Terminal Strip |
| UNSPSC: | 39121407 |
| UPC 12 Digit: | 783250895137 |
| Unique Product Key: | 5610192 |
| comm code enhanced: | 64400 |
