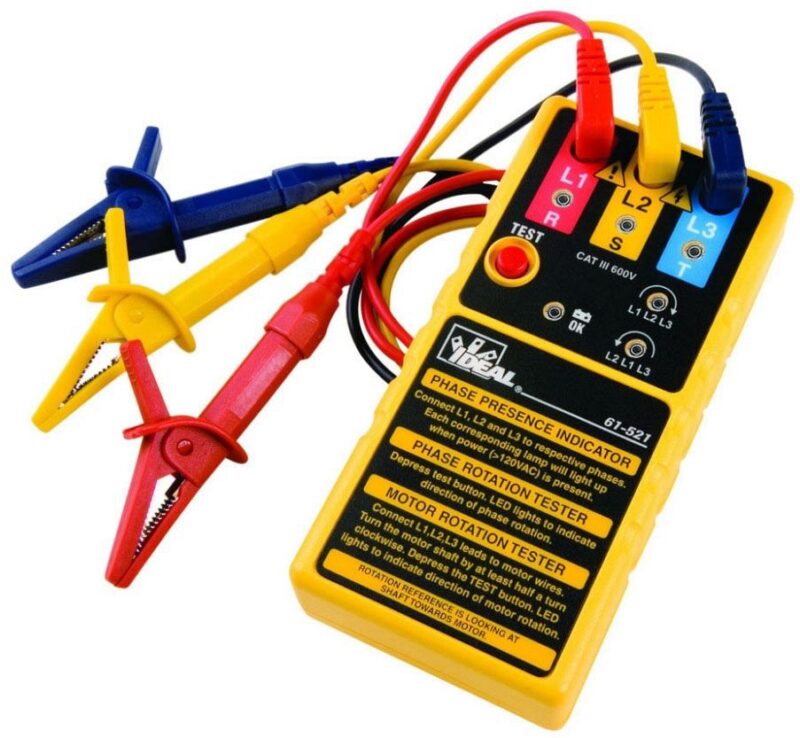

Ideal 61-521 3 Phase Motor Rotation Tester
$230.69
Description:
Ideal 61-521 3 Phase Motor Rotation Tester
Ideal 61-521 3 Phase Motor Rotation Tester
Technical Description:
2.8 Inch Width X 1.4 Inch Depth X 6 Inch Height Size; 10 to 400 Hertz Frequency Rating; LED, Neon Lamp Display Type; CE Approval; 600 Volt AC Voltage Rating; 18 Milliamp Current Rating; 181 Gram Weight; 5 to 131 Deg F Operating Temperature
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325061521 |
| Size: | 2.8 Inch Width x 1.4 Inch Depth x 6 Inch Height |
| Approval: | CE |
| Additional Information: | Includes Carrying Case, Alligator Clip Lead, (1) 9 Volt Battery, Operating Instruction |
| Catalog Number: | 61-521 |
| Circuit Type: | 3-Phase |
| Voltage Rating: | 600 Volt AC |
| Current Rating: | 18 Milliamp |
| Frequency Rating: | 10 to 400 Hertz |
| Operating Temperature: | 5 to 131 Deg F |
| Display Type: | LED, Neon Lamp |
| Weight: | 181 Gram |
| CATALOG DESCRIPTION: | 3-PHASE/MOTOR ROTATION TESTER, VOLTAGE RATING: 100 – 600 VAC (10 – 400 HZ) NOMINAL FOR PHASE PRESENCE INDICATION, AMPERAGE RATING: 18 MILAMP MAXIMUM CONSUMPTION, 3 PH PHASE, TEMPERATURE RATING: 5 – 131 DEG F OPERATING, -4 TO 158 DEG F STORAGE, DISPLAY: NEON LAMPS AND LEDS, DIMENSIONS: 6 IN HEIGHT X 2.8 IN WIDTH X 1.4 IN DEPTH, PHASE ROTARY FIELD DIRECTION: 1 – 600 VAC (2 – 400 HZ), DETERMINATION OF MOTOR ROTATION: 1 – 600 VAC (2 – 400 HZ) REQUIRES GREATER THAN 1/2 TURN, OVER LOAD PROTECTION: 550 V (BETWEEN ALL TERMINALS), FUSES: 5 X 20 MM, 200 MILAMP/250 V FUSE, BATTERY: (1) 9 V (IEC 6LR61), WEIGHT: 6.4 OZ (INCLUDING BATTERY), INCLUDES: CARRYING CASE, ALLIGATOR CLIP LEADS, (1) 9 V BATTERY, OPERATING INSTRUCTIONS, MEETS IEC-1010 (EN61010) SAFETY REQUIREMENTS, CE N12966, CAT III 600V |
| Category: | Testers & Accessories |
| Full Technical Description: | 2.8 Inch Width X 1.4 Inch Depth X 6 Inch Height Size; 10 to 400 Hertz Frequency Rating; LED, Neon Lamp Display Type; CE Approval; 600 Volt AC Voltage Rating; 18 Milliamp Current Rating; 181 Gram Weight; 5 to 131 Deg F Operating Temperature; 3-Phase Circuit Type; Includes Carrying Case, Alligator Clip Lead, (1) 9 Volt Battery, Operating Instruction |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 61-521 3 Phase Motor Rotation Tester |
| Sub-Category: | Phase Monitor |
| UNSPSC: | 41113602 |
| UPC 12 Digit: | 783250615216 |
| Unique Product Key: | 2989178 |
| comm code enhanced: | 66410 |
