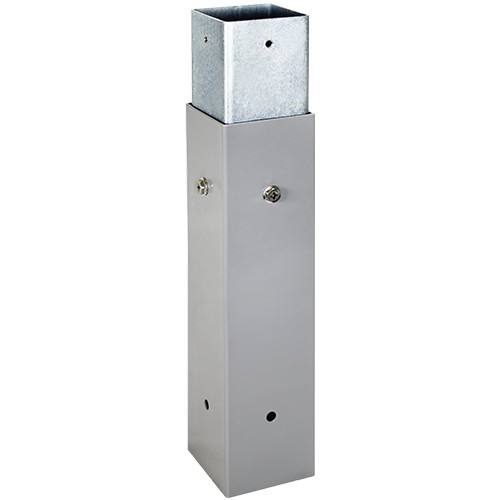

PP-30 & PP-60 EXT. COUPLING 12” PPEC-12
$50.81
Pp-30 & Pp-60 Ext. Coupling 12?
- Description
- Additional information
- Reviews (0)
Description
| Category | PREFAB |
| Page | P17 |
| Description: | |
| The Power Pedestal Extension Coupling adds 12” of height to Orbit’s patent pending Rooftop Power Pedestal Series. PPEC-12 is an ideal solution for commercial roofing that require layers of extended foam insulation between the base structure and finished rooftop surface. Multiple PPEC-12s can be stacked on top of each other, allowing for infinite extension of Power Pedestal height. To install, slip the PPEC-12 bottom opening over Power Pedestal Base (PP-30-B or PP-60-B); then slip the Power Pedestal Stand (PP-30-S or PP-60-S) opening over PPEC-12 top coupling, and secure with bolts. | |
| Features: | |
| – Add 12” of height to Rooftop Power Pedestal – Stack multiple PPEC-12 for infinite extension (intervals of 12”) – Bottom opening slips onto Power Pedestal Base (PP-30-B or PP-60-B) – Top inner coupling slips into Power Pedestal Stand (PP-30-S or PP-60-S) – Includes eight (8) 1/4″-20 Bolts (four securing coupling, four individually packed) – Watertight when buried in extended foam insulation (by other) |
|
| Specifications: | |
| Material: | 13 GA Steel (outer raceway and inner coupling) |
| Raceway Coating: | Zinc Plating + Powder Coated |
| Coupling Coating: | Zinc Plating |
| Color | Grey (outer raceway) |
Catalog
|
UPC |
Description |
Dimensions
|
Std.
|
Weight/Std.Pkg. |
| PPEC-12 | 8-35243-02924-8 | PP-30 & PP-60 EXT. Coupling 12” | 12” x 3″ x 3″ | 4 | 17.6 lbs |
ROOF SEALANT DISCLAIMER: End users are advised to work with roofing contractor to ensure Power Pedestal installed on rooftops are properly sealed in accordance with all applicable code enforcement agencies; authorities having jurisdiction (AHJ); city, county and state building codes; project specifications, et. al. Always ensure the Power Pedestal Extension PPEC-12 stay below the finished flashing.
