NEMA TYPE 1 FLUSH COVERS SFC-1212
$14.25

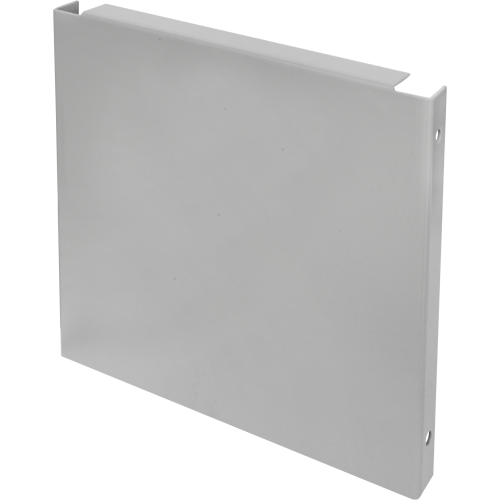

Screw Flush Cover For Nema 1 Enclosure 12X12
- Description
- Additional information
- Reviews (0)
Description
| Category | NEMA ENCLOSURES |
| Description: | |
| Orbit Industries’ NEMA 1 Flush Covers (SFC Series) are designed to provide a secure and aesthetically pleasing solution for enclosures installed in residential, commercial, or light industrial applications. The SFC Series are made for use with NEMA 1 enclosures to protect electrical wiring and components from incidental contact while ensuring an unobstrusive finish when installed. They are ideal for junction boxes and panel enclosures requiring a clean, streamlined appearance. | |
| Features: | |
| – ANSI 61 Gray Polyester Powder Paint Finish Inside and Out – 16 Gauge Steel or Plated Steel – Replacement blank cover – Designed to meet or exceed NEMA 1 standards for electrical enclosures, ensuring reliable performance and safety – Designed to extend 3/4″ beyond the enclosure on all sides, providing proper coverage and a clean, flush-mounted appearance |
|
| Certifications: | |
  |
|
| UL File Number: | |
| E331152 | |
| Literature | |
| CAT NO | UPC | Product Dim. (LxWxH) | STD PKG | STD PKG WT. |
| SFC-66 | 8-35243-04156-1 | 7.50″ x 7.50″ x 0.06″ | 10 | 11.88 lbs. |
| SFC-88 | 8-35243-04157-8 | 9.50″ x 9.50″ x 0.06″ | 10 | 18.96 lbs. |
| SFC-1212 | 8-35243-04159-2 | 13.50″ x 13.50″ x 0.06″ | 10 | 37.77 lbs. |
Additional information
| Weight | 37.77 kg |
|---|
