NEMA TYPE 1 SCREW COVER ENCLOSURE WITH 1/2” K.O. 12” X 12” X 4”
$46.71
Nema 1 Screw Cover Enclosure 12X12X4, 1/2″ Ko, 7 Each Side
- Description
- Additional information
- Reviews (0)
Description
| Category | NEMA ENCLOSURES |
| Page | Prefab33 |
| Barcode | 8-35243-04001-4 |
| Description: | |

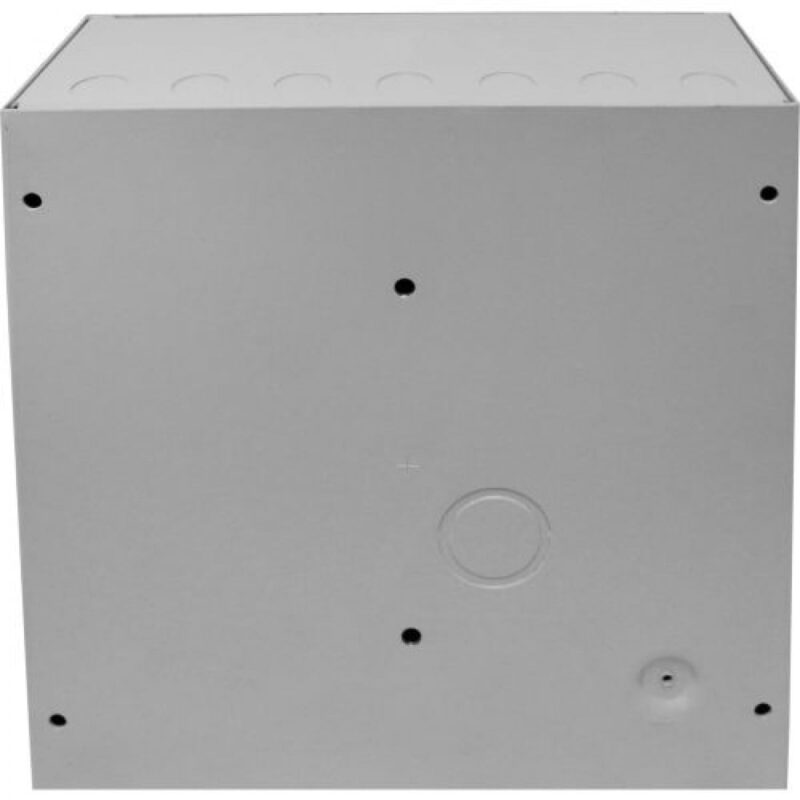

| Orbit’s 12124-750 is a Specialty NEMA Type 1 enclosure ideal for Lighting Control Relay Systems or as a Home Run pull-box. Specialty K.O. pattern eliminates the need to manually punch knockouts in standard NEMA 1 enclosure. | |
| Features: | |
| – ANSI 61 Gray Polyester Powder Paint Finish Inside and Out – 16 Gauge Steel or Plated Steel – Mounting Holes on back of box (3/8″ distance from back of box to bottom of K.O.) |
|
| Dimensions: | |
| Width | 12″ |
| Height | 12″ |
| Depth | 4″ |
| Specifications: | |
| Material | Gauge or Plated Steel |
| Color | Gray |
| K.O. | (28) – 1/2″ K.O. on Sides (1) – 1″ & 1-1/4″ CKO on Back |
| Packaging Info: | |
| Std Pkg | 2 |
| Certifications: | |
 |
|
| UL File Number: | |
| E331152 | |
| Literature | |
Additional information
| Weight | 20.06 kg |
|---|
