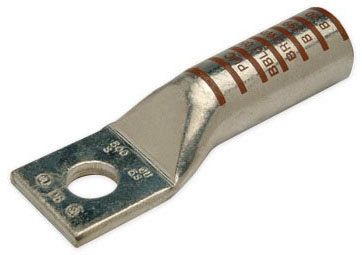

Penn-Union BBLU-3S3 1-Hole Copper Crimp Lug
$6.06
Description:
Penn-Union BBLU-3S3 1-Hole Copper Crimp Lug
Penn-Union BBLU-3S3 1-Hole Copper Crimp Lug
Technical Description:
Seamless Tin Plated Copper Material; White Color; 2-5/32 Inch Overall Length; 1-1/8 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 3 AWG Stranded Conductor Size; 1/4 Inch Stud Size; T-9/T-346 Die Index
- Description
- Reviews (0)
Description
Product Specifications
| Category: | Large Terminals & Connectors |
| Full Size Image | |
| Full Technical Description: | Seamless Tin Plated Copper Material; White Color; 2-5/32 Inch Overall Length; 1-1/8 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 3 AWG Stranded Conductor Size; 1/4 Inch Stud Size; T-9/T-346 Die Index; 3/4 Inch L X 17/32 Inch W X 0.11 Inch Thk Pad Size; 1 Pad Hole(S); Long Barrel Type; PENN-CRIMPS[R] Brand; BBLU Model |
| Manufacturer: | Penn-Union Corp. |
| Manufacturer Brand: | Penn-Union Corp. |
| Product Description: | Penn-Union BBLU-3S3 1-Hole Copper Crimp Lug |
| Sub-Category: | Compression Cable Lug |
| UNSPSC: | 39121405 |
| UPC 12 Digit: | 785037217422 |
| Unique Product Key: | 6075199 |
| comm code enhanced: | 64120 |
