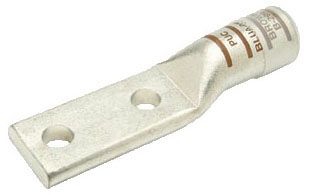

Penn-Union BLUA-2/0D 2/0 2-Hole Crimp Lug
$15.63
Description:
Penn-Union BLUA-2/0D 2/0 2-Hole Crimp Lug
Penn-Union BLUA-2/0D 2/0 2-Hole Crimp Lug
Technical Description:
Seamless Tin Plated Aluminum Material; Olive Color; 4-21/32 Inch Overall Length; 1-3/32 Inch Barrel Length; Aluminum/Copper Conductor Material; UL Approval; 35 kV Voltage Rating; 2/0 AWG Stranded Conductor Size; 1/2 Inch Stud Size; T-297 Die Index
- Description
- Reviews (0)
Description
Product Specifications
| Category: | Large Terminals & Connectors |
| Full Size Image | |
| Full Technical Description: | Seamless Tin Plated Aluminum Material; Olive Color; 4-21/32 Inch Overall Length; 1-3/32 Inch Barrel Length; Aluminum/Copper Conductor Material; UL Approval; 35 kV Voltage Rating; 2/0 AWG Stranded Conductor Size; 1/2 Inch Stud Size; T-297 Die Index; 2-29/32 Inch L X 15/16 Inch W X 1/4 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; PENN-CRIMPS[R] Brand; BLUA Model |
| Manufacturer: | Penn-Union Corp. |
| Manufacturer Brand: | Penn-Union Corp. |
| Product Description: | Penn-Union BLUA-2/0D 2/0 2-Hole Crimp Lug |
| Sub-Category: | Compression Cable Lug |
| UNSPSC: | 39121405 |
| UPC 12 Digit: | 785037235136 |
| Unique Product Key: | 6072948 |
| comm code enhanced: | 64120 |
