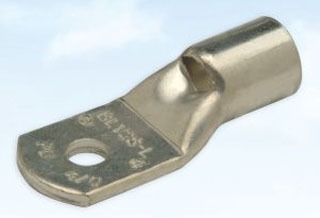

Penn-Union BLY2C-L4 2 Compression Terminal Crimp
$2.96
Description:
Penn-Union BLY2C-L4 2 Compression Terminal Crimp
Penn-Union BLY2C-L4 2 Compression Terminal Crimp
Technical Description:
Electrolytic Tin Plated Seamless Copper Material; 1.89 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 2 AWG, 2 (Aircraft), 2 (An) Conductor Size; 1/2 Inch Stud Size; 41 Die Index; 0.77 Inch W Pad Size; 1 Pad Hole(S); Penn-Crimps. Brand
- Description
- Reviews (0)
Description
Product Specifications
| Category: | Large Terminals & Connectors |
| Full Size Image | |
| Full Technical Description: | Electrolytic Tin Plated Seamless Copper Material; 1.89 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 2 AWG, 2 (Aircraft), 2 (An) Conductor Size; 1/2 Inch Stud Size; 41 Die Index; 0.77 Inch W Pad Size; 1 Pad Hole(S); Penn-Crimps. Brand; Lug Type Ring Tongue; Wire Strip Length 5/8 Inch; With Inspection Window; BLY Model |
| Manufacturer: | Penn-Union Corp. |
| Manufacturer Brand: | Penn-Union Corp. |
| Product Description: | Penn-Union BLY2C-L4 2 Compression Terminal Crimp |
| Sub-Category: | Compression Cable Lug |
| UNSPSC: | 39121405 |
| UPC 12 Digit: | 785037905640 |
| Unique Product Key: | 6076632 |
| comm code enhanced: | 64120 |
