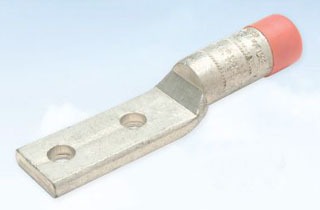

Penn-Union FULA-010-D Compression Terminal
$31.09
Description:
Penn-Union FULA-010-D Compression Terminal
Penn-Union FULA-010-D Compression Terminal
Technical Description:
EC Grade High Purity Aluminum Material; 6-5/8 Inch Overall Length; Acsr/Aluminum/Copper Conductor Material; 9/16 Inch Stud Size; 1-1/8 to 2 or 316/705 Die Index; 3-1/2 Inch L X 1-1/2 Inch W X 3/8 Inch Thk Pad Size; 2 Pad Hole(S)
- Description
- Reviews (0)
Description
Product Specifications
| Category: | Large Terminals & Connectors |
| Full Size Image | |
| Full Technical Description: | EC Grade High Purity Aluminum Material; 6-5/8 Inch Overall Length; Acsr/Aluminum/Copper Conductor Material; 9/16 Inch Stud Size; 1-1/8 to 2 or 316/705 Die Index; 3-1/2 Inch L X 1-1/2 Inch W X 3/8 Inch Thk Pad Size; 2 Pad Hole(S); 1/0 AWG ACSR Conductor Size; 3/0 AWG Solid, 1/0 AWG Stranded Aluminum/Copper Conductor Size; Aluminum PENN-CRIMPS[R] Brand; Conductor Size 2/0 AWG Compact; Pad Hole Spacing 1-3/4 Inch; FULA Model |
| Manufacturer: | Penn-Union Corp. |
| Manufacturer Brand: | Penn-Union Corp. |
| Product Description: | Penn-Union FULA-010-D Compression Terminal |
| Sub-Category: | Compression Terminal |
| UPC 12 Digit: | 785037353014 |
| Unique Product Key: | 6073068 |
| comm code enhanced: | 64120 |
