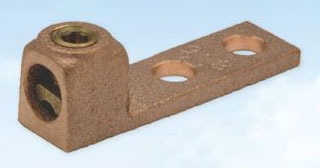

Penn-Union VL-21761 6-AWG 2-Hole Terminal Lug
$46.99
Description:
Penn-Union VL-21761 6-AWG 2-Hole Terminal Lug
Penn-Union VL-21761 6-AWG 2-Hole Terminal Lug
Technical Description:
Horizontal 90 Deg Type; Copper Alloy Material; 2 Inch Overall Length; 8 AWG Solid min. Conductor Size; 6 AWG Stranded Max. Conductor Size; UL Approval; 1 Conductor(S); 9/32 Inch Stud Size; 1-7/16 Inch L X 1/2 Inch W X 1/8 Inch Thk Pad Size; 2 Pad Hole(S)
- Description
- Reviews (0)
Description
Product Specifications
| Category: | Small Terminals & Connectors |
| Full Size Image | |
| Full Technical Description: | Horizontal 90 Deg Type; Copper Alloy Material; 2 Inch Overall Length; 8 AWG Solid min. Conductor Size; 6 AWG Stranded Max. Conductor Size; UL Approval; 1 Conductor(S); 9/32 Inch Stud Size; 1-7/16 Inch L X 1/2 Inch W X 1/8 Inch Thk Pad Size; 2 Pad Hole(S); Straight Pad Type; Hex Socket Screw Type; Rectangular Flange; VL Model |
| Manufacturer: | Penn-Union Corp. |
| Manufacturer Brand: | Penn-Union Corp. |
| Product Description: | Penn-Union VL-21761 6-AWG 2-Hole Terminal Lug |
| Sub-Category: | Mechanical Cable Lug |
| UNSPSC: | 39121408 |
| UPC 12 Digit: | 785037113762 |
| Unique Product Key: | 6072683 |
| comm code enhanced: | 64110 |
