MULTIPLE-BOX BAR HANGER, FLAT MBBH-24
$7.63
Multiple Box Bar Hanger – Flat 24″
- Description
- Additional information
- Reviews (0)
Description
| Category | PREFAB |
| Page | P15 |
| Features: | |
| – Pre-galvanized 18 Gauge sheet metal – Accommodate 4” (4S) and 4-11/16” (5S) square, and multi-gang steel boxes – Allows steel boxes to adjust easily horizontally along the bracket – Reduces assembly time on job site For more between stud rough-in solutions, please see Orbit’s Telescoping Support Bracket and Simple Support Bracket Family. |
|
| Dimensions: | |
| Width | 6″ |
| Length | 16″ or 24″ |
| Thickness | 18 Gauge (0.043″) |
| Box Sizes | 4″ & 4-11/16″ |
| Box Depth | 1-1/2″ & 2-1/8″ |
| Specifications: | |
| Material | Sheet Steel |
| Color | Galvanized |
| Certifications: | |
  |
|
Catalog
|
UPC |
Description |
Std.
|

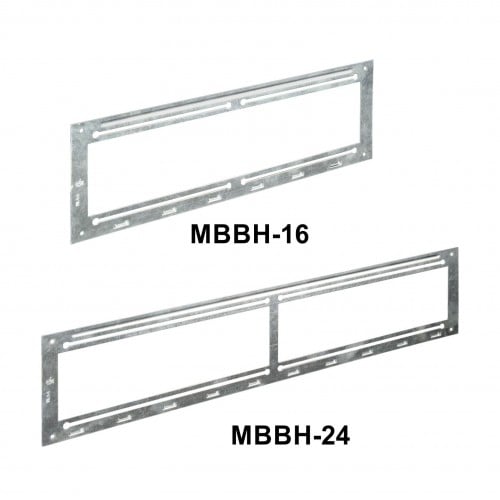

| MBBH-16 | 8-35243-05267-3 | MULTIPLE BOX BAR HANGER – FLAT FOR 16″ STUD SPACING | 50 |
| MBBH-24 | 8-35243-05268-0 | MULTIPLE BOX BAR HANGER – FLAT FOR 24″ STUD SPACING | 50 |
Additional information
| Weight | 30.24 kg |
|---|
