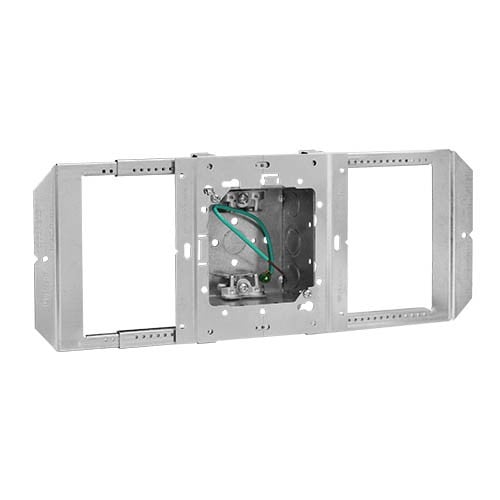

PREASSEMBLED SSB-T5 WITH UMA AND 4S DEEP BOX WITH ANGLED MC CLAMPS AND 10” GROUND PIGTAIL SSB-A4
$14.27
Ssb-T5 + Uma + 4Sdb-Amc-Pt
- Description
- Reviews (0)
Description
| Category | PREFAB | |
| Page | P1-P8 | |
| Barcode | 8-35243-02897-5 | |
| Description: | ||
| Orbit’s Preassembled SSB-T5 with UMA and Angled MC Box is a ready-to-install solution for mounting switches and outlets between wall studs or hard-lid ceiling joists. Junction box features integral MC cable clamps with screws angled up/down – allowing seamless access to screws with a mud ring installed. The SSB-A4 bracket component adjusts from 15” to 25” with UMA attached to bracket. 4” square 2-1/8” deep box features loom pryouts for MC cable, 3/4” to 1/2” eccentric knockouts, 1/2” knockouts, and preinstalled 10” pigtail. UL Listed. | ||
| Features: | ||
| – SSB-T5 bracket adjusts from 15″ to 25″ – Integral MC Clamp screws set at 15° angle – easily secure cable with mud ring installed – 4” square 2-1/8” deep box with loom pryouts, 1/2″ KOs, and 3/4” to 1/2” MKOs – Box includes 10-32 Ground Screw with 10″ Solid Cu. #12AWG Pigtail – Snap-on UMA adapter can be removed and installed quickly without tools – Slide box to critical position – lock in place with one Tek screw – Horizontal pin holes provide quick starting point for screws – Rigidity eliminates need for far-side back support – Compatible with Orbit’s UL Adjustable Rings – Optional BMCS Series provides built-in cable support – Add LVSB Series Rings for low voltage applications that require no back-box – Ships preassembled, reducing installation time |
||
| Specifications: | ||
| Material | Sheet Steel | |
| Color | Galvanized | |
| Side KOs | (4) – 1/2″, (2) – MKO, (4) – Loom | |
| Bottom KOs | (1) – 1/2″ | |
| Packaging Info: | ||
| Std Pkg | 12 | |
| Certifications: | ||
  |
||
| UL File Number: | ||
| E227970 | ||
