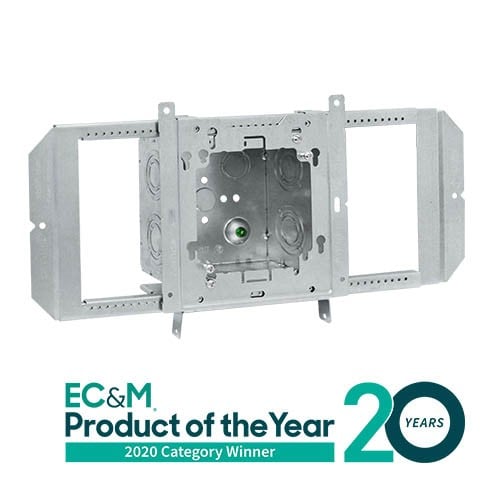

PREASSEMBLED SSB WITH UMA-LVBS AND TRUE 5” SQUARE BOX-SSB-T5B-200
$20.84
Ssb-T5 With Uma-Lvbs + T5R + T5B-200
- Description
- Additional information
- Reviews (0)
Description
| Category | PREFAB | |
| Page | P1-P8 | |
| Barcode | 8-35243-02811-1 | |
| Description: | ||
| Orbit’s Preassembled SSB-T5 with UMA-LVBS and T5B-200 is a ready-to-install solution for mounting large datacom boxes between wall studs or hard-lid ceiling joists. The SSB-T5B-200 bracket component adjusts from 15” to 25” with UMA-LVBS attached to bracket. UMA-LVBS features unique key-hole pattern that allows for pairing of 4” rings with the 5” square box. SSB-T5B-200 includes preinstalled screws, ready to take a 4” ring or cover. UL Listed. | ||
| Features: | ||
| – SSB-T5 bracket adjusts from 15″ to 25″ – Rigidity eliminates need for far-side back support – T5B-200 offers 75.6 Cu. In. of internal volume – meets min. cable bend radius – Supports all current copper, CAT, and fiber optic cables, with space for predicted cable size increases – UMA-LVBS permits 4″ mud ring attachment to 5″ square box – Slide 5” box to critical position – lock in place with one Tek screw – Includes preinstalled #8-32 screws for quick attachment of 4” rings or covers – Horizontal pin holes provide quick starting point for screws – Compatible with Orbit’s UL Adjustable Rings – Optional BMCS Series provides built-in cable/conduit support – Add LVSB Series Rings for low voltage applications that require no back-box – Ships preassembled, reducing installation time |
||
| Specifications: | ||
| Material | Sheet Steel | |
| Color | Galvanized | |
| KO Sides | (2) 1″ to 2″ C.K.O.’s, (2) 1″ & 1-1/4″ M.K.O.’s, | |
| (2) 1/2″ & 3/4″ M.K.O.’s | ||
| KO Bottom | (1) 1/2″ & 3/4″ M.K.O.’s, (1) 3/4″ & 1″ M.K.O.’s | |
| (1) 1/2″ K.O.’s, (2) Ground Screws | ||
| Box Dimensions: | ||
| Width | 5″ | |
| Height | 5″ | |
| Depth | 3 – 1/4″ | |
| Cu. In. | 71.8 | |
| Packaging Info: | ||
| Std Pkg | 10 | |
| Certifications: | ||
 |
||
| UL File Number: | ||
| E227970 | ||
| Literature | ||
Product Video
Additional information
| Weight | 29.98 kg |
|---|
