4” SQUARE RING ADAPTER FOR 3-GANG BOX
$13.96
3-Gang Switch Cover – 4S Adapter Ring
- Description
- Additional information
- Reviews (0)
Description
| Category | SWITCH BOX |
| Page | A27 |
| Barcode | 8-35243-02851-7 |
| Description: | |

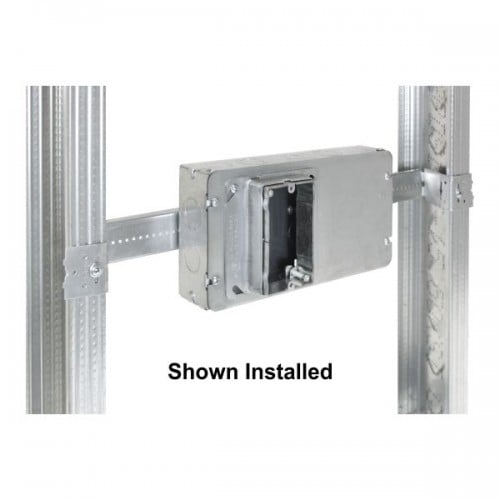

| Orbit Industries’ 4″ Square Ring Adapter for 3-Gang Junction Box transitions a multigang box into a 4” square opening. Ideal for construction markets where 2-1/2″ stud depths are common. Increase box fill volume by 55% (65 Cu. In.) versus deep 4-11/16″ Sq. junction boxes (42 Cu. In.). Increased volume allows for more conductors and fittings within tight wall spaces. 4M3-4S is designed for use with 3-Gang Junction Boxes (SB-3). For New Construction and Retrofit applications. | |
| Features: | |
| – Ideal where 2-1/2″ stud depths are common – Compatible with any style of 4″ square device rings, including adjustable depth models – Increase box fill volume by 55% (up to 65 Cu. In.) versus deep 4-11/16” Sq. junction boxes (42 Cu. In.) – Designed for use with shallow (1-5/8″ Deep) 3-Gang Outlet Boxes (SB-3) |
|
| Dimensions: | |
| Width | 8 – 5/8″ |
| Height | 4 – 9/16″ |
| No. of Gangs | 3 |
| Specifications: | |
| Material | 16 GA Sheet Steel |
| Color | Galvanized |
| Packaging Info: | |
| Std Pkg | 25 |
| Certifications: | |
  |
|
Additional information
| Weight | 11.68 kg |
|---|
