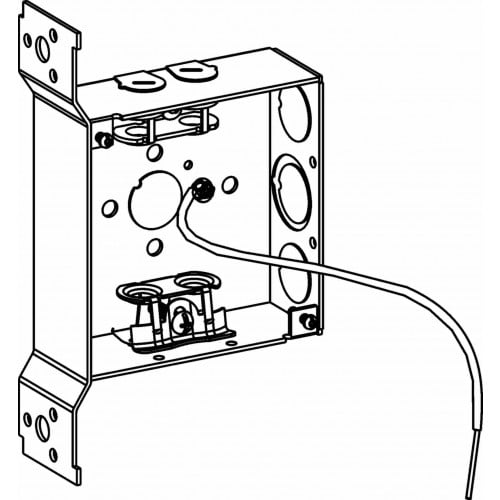

1-1/2” DEEP, 4” SQUARE (4S) BOX WELDED WITH MC CLAMPS, FB BRACKET & PIGTAIL
$3.94
4″ Sq. Box, 1-1/2″ Deep, Mc Clamps, Fb Bracket With Pigtail
- Description
- Additional information
- Reviews (0)
Description
| Category | SWITCH BOX | |
| Page | A8 | |
| Barcode | 8-35243-01601-9 | |
| Features: | ||
| – MC Clamp for Metal Clad Cables – FB Bracket for offset mounting on flat side of stud or joist – Includes 7″ Solid Cu. #12AWG Pigtail and 10-32 Ground Screw – For Fixture/Luminaire Support of 50 lbs or less |
||
| Dimensions: | ||
| Width | 4″ | |
| Height | 4″ | |
| Depth | 1 – 1/2″ | |
| Cu In | 21 | |
| Specifications: | ||
| Material | 16 GA Sheet Steel | |
| Mfg. Process | Welded | |
| Color | Galvanized | |
| Clamp Type | BX/MC | |
| Bracket | FB, Flush | |
| KO Sides | (2) – 1/2″, (1) – MKO, (4) – Loom | |
| KO Bottom | (1) – 1/2″ | |
| Packaging Info: | ||
| Std Pkg | 24 | |
| Weight | 20 lbs | |
| Certifications: | ||
  |
||
| UL File Number: | ||
| E227970 | ||
Additional information
| Weight | 20.66 kg |
|---|
