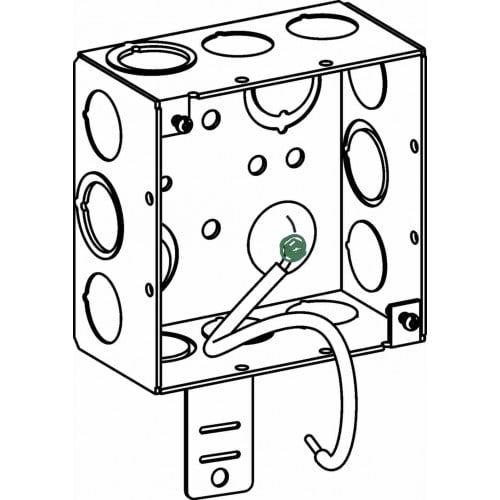

2-1/8” DEEP, 4” SQUARE (4S) DEEP BOX WELDED WITH MKO, PIGTAIL AND BACK SUPPORT ARM
$5.75
4S 2-1/8″ Deep Box With P-Tail & Back Support
- Description
- Additional information
- Reviews (0)
Description
| Category | SWITCH BOX | |
| Page | A9 | |
| Barcode | 8-35243-00126-8 | |
| Features: | ||
| – Fully assembled to reduce time and wasted material – Raised ground emboss – Includes10″ Solid Cu. #12AWG Pigtail and 10-32 Ground Screw – UMI Back Support Arm provides support for studs up to 6″ deep – For Fixture/Luminaire Support of 50 lbs or less |
||
| Dimensions: | ||
| Width | 4″ | |
| Height | 4″ | |
| Depth | 2 – 1/8″ | |
| Cu In | 30.3 | |
| Specifications: | ||
| Material | 16 GA Sheet Steel | |
| Mfg. Process | Welded | |
| Color | Galvanized | |
| KO Sides | (8) – 1/2″, (4) – MKO | |
| KO Bottom | (1) – 1/2″, (2) – MKO | |
| Packaging Info: | ||
| Std Pkg | 24 | |
| Weight | 23 lbs | |
| Certifications: | ||
  |
||
| UL File Number: | ||
| E227970 | ||
